Speed of pg_streaming extension

[janko]

I was curious about measuring the memory usage & speed difference between classic cursor-based pagination and Postgres streaming. So, I created the following script:

require "sequel"
require "faker"
require "tty-progressbar"

DB = Sequel.postgres("janko")
# DB.extension :pg_streaming

unless DB.table_exists?(:accounts)
  DB.create_table! :accounts do
    primary_key :id
    String :status
    String :email
    String :password
  end

  values = Array.new(1000) do
    {
      status: %w[unverified verified closed].sample,
      email: Faker::Internet.email,
      password: Faker::Internet.password(min_length: 30),
    }
  end

  DB[:accounts].multi_insert(values * 1000, commit_every: 1000)
end

progress = TTY::ProgressBar.new("[:bar] :elapsed :percent (:eta)", total: DB[:accounts].count)
DB[:accounts].paged_each.each_slice(1000) do |accounts|
  progress.advance(accounts.size)
end

With cursors, this takes around 2 seconds. However, when I enable the pg_streaming extension, which changes #paged_each to use streaming, the ETA for completion was > 25 minutes.

Am I missing something? Maybe I'm misunderstanding Postgres streaming, thinking that it should be comparably fast to the cursor implementation? I'm using the latest Sequel (5.54.0), sequel_pg (1.14.0), and Postgres (14.2) versions (installed via Homebrew).

[jeremyevans]

PostgreSQL streaming is designed to minimize memory usage (keep 1 row in memory at a time). It is sort of equivalent from a network protocol perspective for using a cursor with a fetch size of 1 (though you only need to use one statement total and not one statement per cursor fetch). So it doesn't surprise me that it is slower from a throughput perspective, though 10x slower is higher than I would have expected.

To clarify whether or not this is a Sequel issue, is it possible to do the similar testing using ruby-pg directly, and see if you get a similar result?

[jeremyevans]

Thanks for point that out. When I have time, I'll investigate that and see if I can use it directly or use a similar approach in sequel_pg.

[jeremyevans]

stream_each cannot be used directly because among other things, it uses string keys and not symbol keys in the hashes. However, I can probably take a similar approach of using libpq directly instead of calling ruby-pg methods to speed up single row mode.

[jeremyevans]

I'm doing some testing now. I can replicate the slowdown. With 400,000 records, I'm seeing about 1.69 seconds using the cursor approach, and 4.01 seconds using the streaming approach. This is closer to the performance difference I expected. I'm not sure why your streaming results are orders of magnitude slower. The example I'm using is simpler, though I'm not sure to what extent that matters:

t = Time.now
DB[:accounts].paged_each{}
p Time.now - t

I'll look into modifying sequel_pg to use the same streaming approach as stream_each to improve performance. If that isn't possible, I'll disable the default override of paged_each.

[janko]

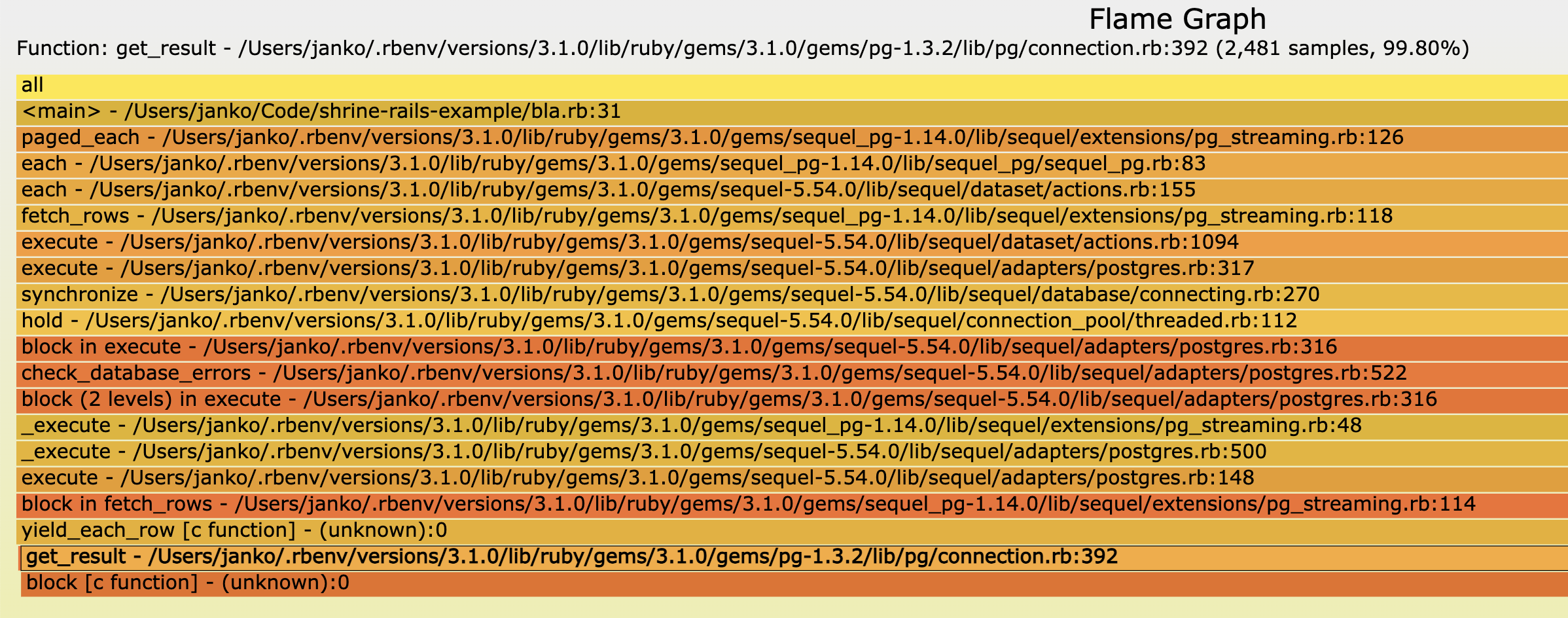

Interesting, when I use plain paged_each (without the each_slice), I still get the same orders of magnitude slowdown. I'm wondering what's different in our systems. FWIW, this is what rbspy gets to say about it when I profile the running ruby process for couple of seconds:

[janko]

Or in the terminal form:

Time since start: 24s. Press Ctrl+C to stop.
Summary of profiling data so far:
% self  % total  name
 99.75    99.75  block [c function] - (unknown)
  0.12     0.12  sync_get_result [c function] - (unknown)
  0.08     0.08  block in each - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/dataset/actions.rb
  0.04   100.00  yield_each_row [c function] - (unknown)
  0.00   100.00  synchronize - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/database/connecting.rb
  0.00   100.00  paged_each - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel_pg-1.14.0/lib/sequel/extensions/pg_streaming.r
  0.00   100.00  hold - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/connection_pool/threaded.rb
  0.00   100.00  fetch_rows - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel_pg-1.14.0/lib/sequel/extensions/pg_streaming.r
  0.00   100.00  execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/dataset/actions.rb
  0.00   100.00  execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/adapters/postgres.rb
  0.00   100.00  each - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel_pg-1.14.0/lib/sequel_pg/sequel_pg.rb
  0.00   100.00  each - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/dataset/actions.rb
  0.00   100.00  check_database_errors - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/adapters/postgres
  0.00   100.00  block in fetch_rows - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel_pg-1.14.0/lib/sequel/extensions/pg_st
  0.00   100.00  block in execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/adapters/postgres.rb
  0.00   100.00  block (2 levels) in execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/adapters/po
  0.00   100.00  _execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel_pg-1.14.0/lib/sequel/extensions/pg_streaming.rb
  0.00   100.00  _execute - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/sequel-5.54.0/lib/sequel/adapters/postgres.rb
  0.00   100.00  <main> - bla.rb
  0.00    99.88  get_result - /Users/janko/.rbenv/versions/3.1.0/lib/ruby/gems/3.1.0/gems/pg-1.3.2/lib/pg/connection.rb

[jeremyevans]

I think this is a performance regression in ruby-pg. With current sequel_pg and ruby-pg 1.2.3, it's only about 2x slower. With current sequel_pg and ruby-pg 1.3.0 and higher, it is orders of magnitude slower, about 300 records/second for me.

Can you see if you can replicate the results with pg 1.2.3 and pg 1.3.0 in your environment (using your ruby-pg test, without Sequel)? If you can replicate them, we should probably file a bug with ruby-pg. I checked that --disable-gvl-unlock didn't seem to effect performance any.

FWIW, with some small modifications to ruby-pg, I can get sequel_pg to use the ruby-pg streaming support. That results in about 4.72 seconds, still longer than the 4.01 seconds I was getting previously with older versions of ruby-pg, but not longer crazy long. It still looks like we should disable the use of streaming in paged_each by default.

[janko]

I think you're right. I was able to replicate the performance regression between 1.2.3 and 1.3.0. On 1.2.3, the streaming & non-streaming iterations performed roughly the same to me, both were faster than the non-streaming iteration on 1.3.0, while the streaming iteration on 1.3.0 had the slowdown.

So, it might be worth filing a bug report with ruby-pg, as you suggested. Personally, as long as sequel_pg uses the optimized streaming that avoids the performance regression, I'm happy. Thanks for coming up with a fix 🙏🏻

[jeremyevans]

Here's the diff to ruby-pg and sequel_pg if you want to play around with it:

ruby-pg:

diff --git a/ext/pg_result.c b/ext/pg_result.c
index 8306be1..c996be5 100644
--- a/ext/pg_result.c
+++ b/ext/pg_result.c
@@ -1383,7 +1383,7 @@ pgresult_type_map_get(VALUE self)


 static void
-yield_hash(VALUE self, int ntuples, int nfields)
+yield_hash(VALUE self, int ntuples, int nfields, void *data)
 {
        int tuple_num;
        t_pg_result *this = pgresult_get_this(self);
@@ -1397,7 +1397,7 @@ yield_hash(VALUE self, int ntuples, int nfields)
 }

 static void
-yield_array(VALUE self, int ntuples, int nfields)
+yield_array(VALUE self, int ntuples, int nfields, void *data)
 {
        int row;
        t_pg_result *this = pgresult_get_this(self);
@@ -1417,7 +1417,7 @@ yield_array(VALUE self, int ntuples, int nfields)
 }

 static void
-yield_tuple(VALUE self, int ntuples, int nfields)
+yield_tuple(VALUE self, int ntuples, int nfields, void *data)
 {
        int tuple_num;
        t_pg_result *this = pgresult_get_this(self);
@@ -1436,8 +1436,8 @@ yield_tuple(VALUE self, int ntuples, int nfields)
        }
 }

-static VALUE
-pgresult_stream_any(VALUE self, void (*yielder)(VALUE, int, int))
+VALUE
+pgresult_stream_any(VALUE self, void (*yielder)(VALUE, int, int, void*), void* data)
 {
        t_pg_result *this;
        int nfields;
@@ -1465,7 +1465,7 @@ pgresult_stream_any(VALUE self, void (*yielder)(VALUE, int, int))
                                pg_result_check( self );
                }

-               yielder( self, ntuples, nfields );
+               yielder( self, ntuples, nfields, data );

                pgresult = gvl_PQgetResult(pgconn);
                if( pgresult == NULL )
@@ -1516,7 +1516,7 @@ pgresult_stream_any(VALUE self, void (*yielder)(VALUE, int, int))
 static VALUE
 pgresult_stream_each(VALUE self)
 {
-       return pgresult_stream_any(self, yield_hash);
+       return pgresult_stream_any(self, yield_hash, NULL);
 }

 /*
@@ -1532,7 +1532,7 @@ pgresult_stream_each(VALUE self)
 static VALUE
 pgresult_stream_each_row(VALUE self)
 {
-       return pgresult_stream_any(self, yield_array);
+       return pgresult_stream_any(self, yield_array, NULL);
 }

 /*
@@ -1549,7 +1549,7 @@ pgresult_stream_each_tuple(VALUE self)
        /* allocate VALUEs that are shared between all streamed tuples */
        ensure_init_for_tuple(self);

-       return pgresult_stream_any(self, yield_tuple);
+       return pgresult_stream_any(self, yield_tuple, NULL);
 }

 /*

sequel_pg:

index d6c1503..41dfdd3 100644
--- a/ext/sequel_pg/sequel_pg.c
+++ b/ext/sequel_pg/sequel_pg.c
@@ -70,6 +70,7 @@
 PGconn* pg_get_pgconn(VALUE);
 PGresult* pgresult_get(VALUE);
 int pg_get_result_enc_idx(VALUE);
+VALUE pgresult_stream_any(VALUE self, void (*yielder)(VALUE, int, int, void*), void* data);

 static int spg_use_ipaddr_alloc;
 static int spg_use_pg_get_result_enc_idx;
@@ -1659,6 +1660,39 @@ static VALUE spg_set_single_row_mode(VALUE self) {
   return Qnil;
 }

+struct spg__yield_each_row_stream_data {
+  VALUE self;
+  VALUE *colsyms;
+  VALUE *colconvert;
+  VALUE pg_value;
+  PGresult *res;
+  int enc_index;
+  char type;
+};
+
+static void spg__yield_each_row_stream(VALUE rres, int ntuples, int nfields, void *rdata) {
+  struct spg__yield_each_row_stream_data* data = (struct spg__yield_each_row_stream_data *)rdata;
+  VALUE h = rb_hash_new();
+  VALUE self = data->self;
+  VALUE *colsyms = data->colsyms;
+  VALUE *colconvert= data->colconvert;
+  PGresult *res = data->res;
+  int enc_index = data->enc_index;
+  long j;
+
+  for(j=0; j<nfields; j++) {
+    rb_hash_aset(h, colsyms[j], spg__col_value(self, res, 0, j, colconvert , enc_index));
+  }
+
+  if(data->type == SPG_YIELD_MODEL) {
+    VALUE model = rb_obj_alloc(data->pg_value);
+    rb_ivar_set(model, spg_id_values, h);
+    rb_yield(model);
+  } else {
+    rb_yield(h);
+  }
+}
+
 static VALUE spg__yield_each_row_internal(VALUE self, VALUE rconn, VALUE rres, PGresult *res, int enc_index, VALUE *colsyms, VALUE *colconvert) {
   long nfields;
   long j;
@@ -1667,6 +1701,7 @@ static VALUE spg__yield_each_row_internal(VALUE self, VALUE rconn, VALUE rres, P
   VALUE pg_type;
   VALUE pg_value = Qnil;
   char type = SPG_YIELD_NORMAL;
+  struct spg__yield_each_row_stream_data data;

   nfields = PQnfields(res);

@@ -1684,6 +1719,17 @@ static VALUE spg__yield_each_row_internal(VALUE self, VALUE rconn, VALUE rres, P

   spg_set_column_info(self, res, colsyms, colconvert, enc_index);

+  data.self = self;
+  data.colsyms = colsyms;
+  data.colconvert = colconvert;
+  data.pg_value = pg_value;
+  data.res = res;
+  data.enc_index = enc_index;
+  data.type = type;
+
+  pgresult_stream_any(rres, spg__yield_each_row_stream, &data);
+  return self;
+
   while (PQntuples(res) != 0) {
     h = rb_hash_new();
     for(j=0; j<nfields; j++) {

[janko]

Hmm, somehow I'm not able to figure out how to apply these diffs. I cloned both repositories, copied the diff into clipboard, ran pbpaste | git apply in the project root, but on both of them I get error: corrupt patch at line 77 (always the last line).

[jeremyevans]

I updated sequel_pg to not use streaming by default for paged_each: jeremyevans/sequel_pg@d48a7ee

[janko]

Thank you for helping ruby-pg patch the performance regression, and for finding a way how to utilize #stream_each 🤘🏻. I'm also glad that Active Record users can now utilize PG streaming as well 🙂
