How Can I get clip volume of rang3d from active view correctly?

[NealCpf]

hi , I used this way below to get active view clip volume which I put it into .

let clipVolumRange: Range3d | undefined = vp?.view.details.clipVector?.boundingRange;
console.log(clipVolumRange?.center);
console.log(clipVolumRange?.low);
console.log(clipVolumRange?.high);

But the range3d always returned the value below ,whatever I put the clipvolume to anywhere.
Point3d {x: 0, y: 0, z: 0}
CabelTableTool.ts:40 Point3d {x: 1e+200, y: 1e+200, z: 1e+200}
CabelTableTool.ts:41 Point3d {x: -1e+200, y: -1e+200, z: -1e+200}
CabelTableTool.ts:43 1

[pmconne]

That's a null range. The bounding range property is only used in very specific circumstances. What are you trying to accomplish?

[NealCpf]

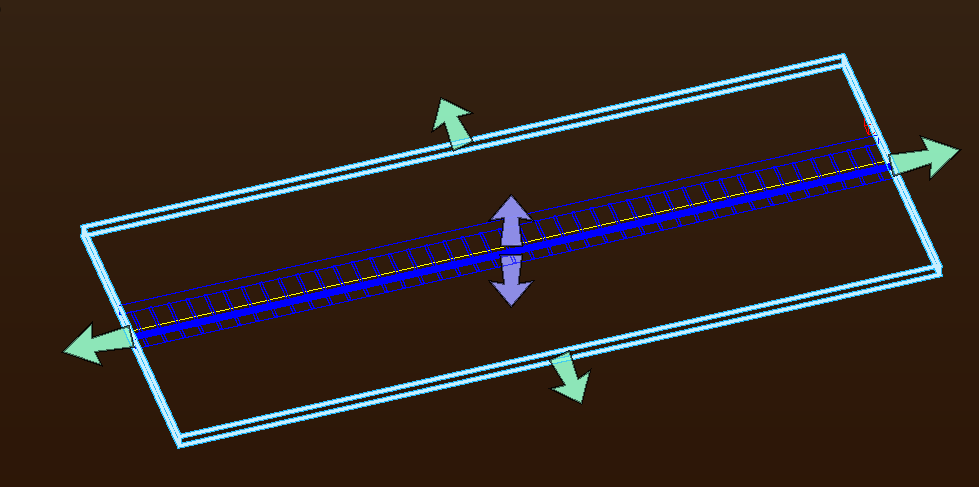

Hi, thanks for your reply. I put this clip volume with view clip tool from keyin command. But I want to get the elements in the clip volume.
So I need the clip volume range3d to query the element with ecsql. Do you have any other idea to get my goal?

[NealCpf]

Thanks you again! I've resolved this issue with under code.

const range = vp?.computeViewRange();
const clip = vp?.view.getViewClip();
if (undefined !== clip) {
const clipRange = ClipUtilities.rangeOfClipperIntersectionWithRange(clip, range!);
if (!clipRange.isNull)
range!.setFrom(clipRange);
}
