revit to bim by iTwin Snapshot

[paprophet]

now,i change a revit to bim by iTwin Snapshot,but

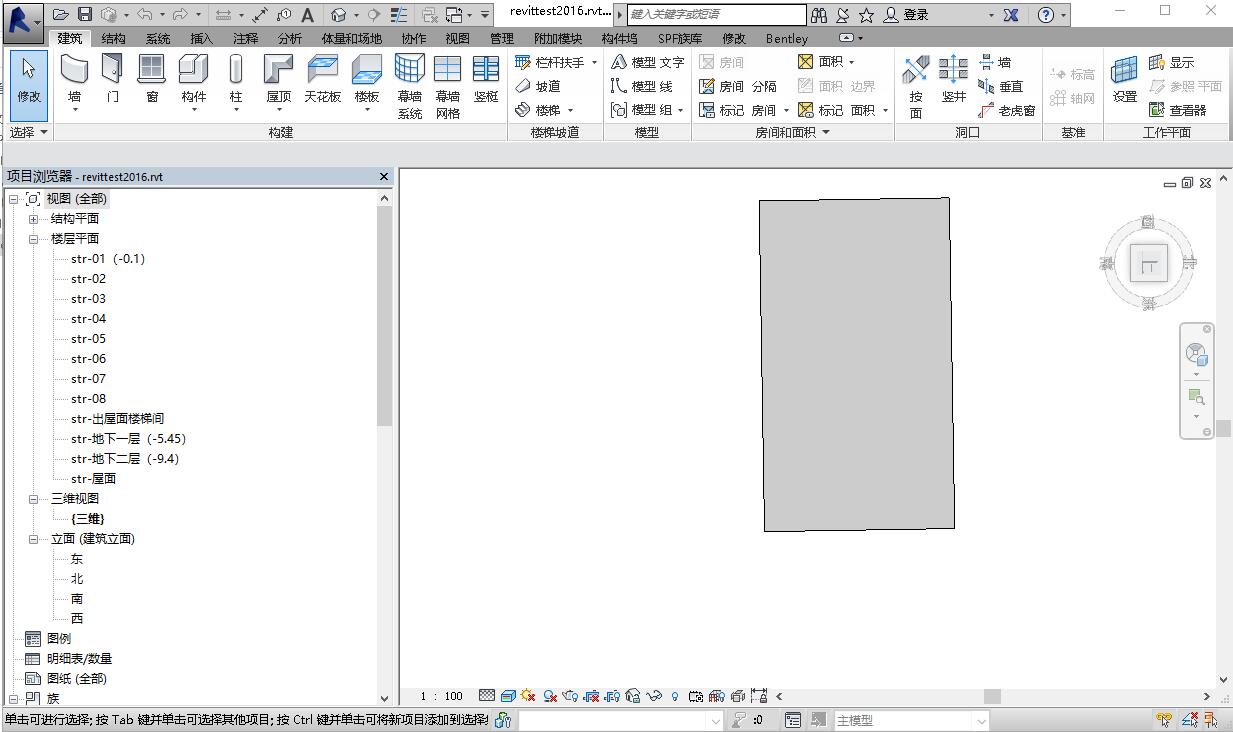

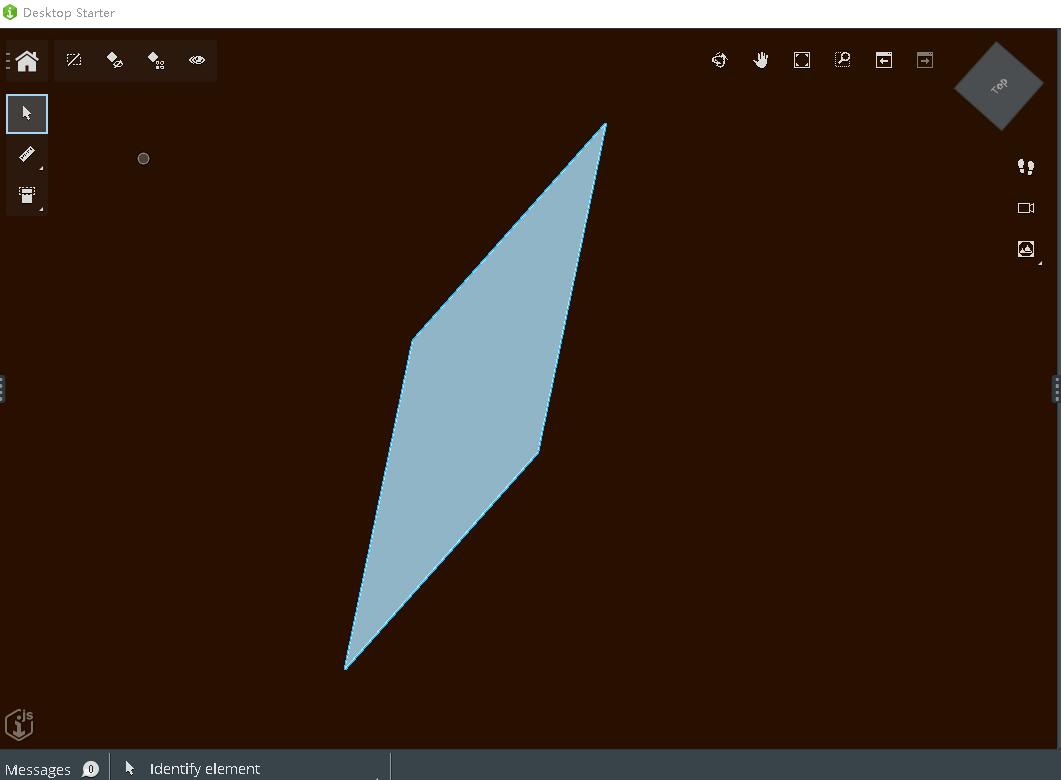

show rectangle in revit but show diamond in imodeljs( or )

[pmconne]

That looks to me like a rectangle being viewed at an angle. Are Revit and Desktop Starter using the same view orientation? If so supply .rvt and .bim file please.

[paprophet]

i will send the file to you by email ! thank you!

[pmconne]

Thanks. The geometry is indeed skewed. I will forward this to the people who work on the Revit connector.

[pmconne]

The connector team has identified the problem and is working on a fix.
