F1 score for instance segmentation

[andreaceruti]

Firstly, thanks to anyone that will spend some of their time in reading this post.

I am using detectron2 for my project and for the moment I am stuck in calculating some standard metrics that go beyond the ones implemented in COCO API. Since COCOEvaluator is very user-friendly I am also using it and I reach very high AP ( 0.84 on my best training setting).
Now I am trying to calculate precision and recall metrics as the standard definition , i.e. precision = TP / (TP+FP) and recall = TP/ (TP+FN), but the results are very poor so I would like to receive a feedback to everyone that can dive into this.
To do this, for every image i calculate TPs, FPs and TNs in this way. (code example on one image below)

#select one image
imgIds = [147]
coco_eval = COCOeval(coco_gt, coco_dt, "segm")
coco_eval.params.imgIds = imgIds
coco_eval.evaluate()

#now I will use the dict produced by the previous function to calculate all

#here i select the dict that corresponds to 'aRng': [0, 10000000000.0]
image_evaluation_dict = coco_eval.evalImgs[0]

#select the index related to IoU = 0.5
iou_treshold_index = 0

#all the detections from the model, it is a numpy of True/False (In my case they are all False)
detection_ignore = image_evaluation_dict["dtIgnore"][iou_treshold_index]

#here we consider the detection that we can not ignore (we use the not operator on every element of the array)
mask = ~detection_ignore

#detections number
n_ignored = detection_ignore.sum()

#and finally we calculate tp, fp and the total positives
tp = (image_evaluation_dict["dtMatches"][iou_treshold_index][mask] > 0).sum()
fp = (image_evaluation_dict["dtMatches"][iou_treshold_index][mask] == 0).sum()
n_gt = len(image_evaluation_dict["gtIds"]) - image_evaluation_dict["gtIgnore"].astype(int).sum()

recall = tp / n_gt
precision = tp / (tp + fp)
f1 = 2 * precision * recall / (precision + recall)

In this way my results are very poor in terms of precision and recall and so I would like to know if I am doing a mistake with this implementation.

[andreaceruti]

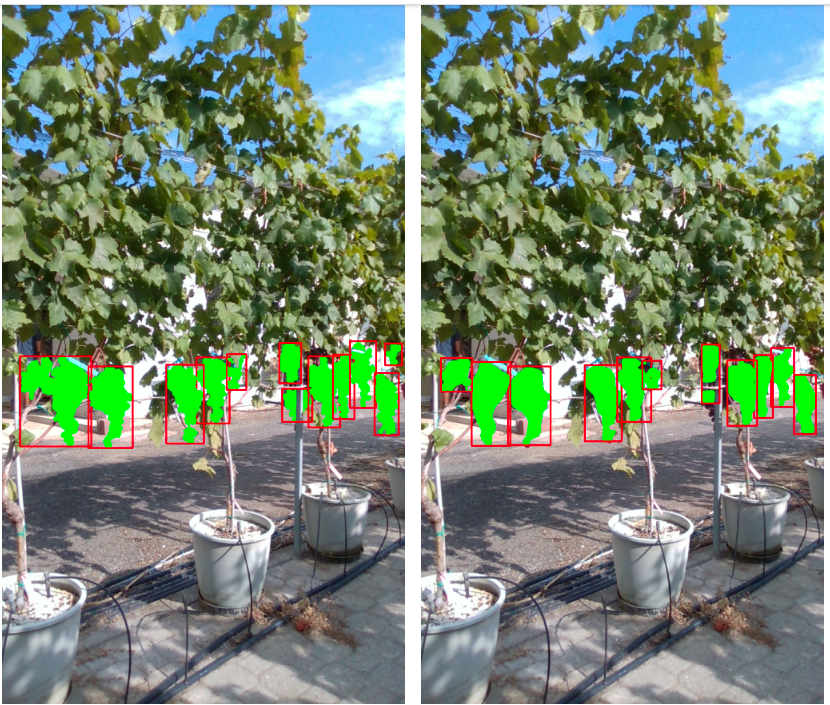

Ok well the problem of my poor results were due to the fact that I was using _C.MODEL.ROI_HEADS.SCORE_THRESH_TEST = 0.05 and instead when I use a value of 0.75 this is what my model produce (on the left we have gt and on the right the predictions)

With this parameter i trade off the average precision given by COCOEvaluator and what my code returns.

The question that remains is: do you think that my code for TP/FP/FN calculation is wrong?

[emmanuel-nwogu]

Hey, did you ever figure out if your calculation was correct?
