Charging Power not constant | jumping between 40W and 8kW

[Lulaschkas]

Describe the bug

While the power plant produces enough energy for charging the Car with ~7kW constant evcc seems like it can't "decide" what it should do.
It's constantly switching between ~8000W and ~40W charging speed.
While running it with the log flag, I also can't really see wrong data from the devices which might cause this. (See log)
I tried updating the software and setting a higher interval to avoid bad readings.
Wallbox: Vestel EVC04 v2.65.0
Inverter: Kostal Plenticore

Steps to reproduce

[1] Connect Vehicle
[2] Set EVCC to "PV" or "Min + PV" mode
[3] Watch

Configuration details

meters:
- type: template
  template: kostal-plenticore
[...]
- type: template
  template: kostal-plenticore
[...]
- type: template
  template: kostal-ksem-inverter

chargers:
- type: template
  template: vestel

Log details

[lp-1  ] DEBUG 2023/04/04 12:17:55 charge power: 8197W
[site  ] DEBUG 2023/04/04 12:17:55 pv power: 5668W
[site  ] DEBUG 2023/04/04 12:17:56 battery soc: 100%
[site  ] DEBUG 2023/04/04 12:17:56 battery power: 2347W
[site  ] DEBUG 2023/04/04 12:17:56 grid power: 1365W
[site  ] DEBUG 2023/04/04 12:17:56 site power: 3712W
[lp-1  ] DEBUG 2023/04/04 12:17:56 charge voltages: [239 241 246]V
[lp-1  ] DEBUG 2023/04/04 12:17:56 detected connected phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:17:56 charge currents: [12.8 12.8 12.7]A
[lp-1  ] DEBUG 2023/04/04 12:17:56 detected active phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:17:56 charge meter total import: 0.500kWh
[lp-1  ] DEBUG 2023/04/04 12:17:56 charger status: C
[lp-1  ] DEBUG 2023/04/04 12:17:56 soc estimated: 31.00% (vehicle: 31.00%)
[lp-1  ] DEBUG 2023/04/04 12:17:56 vehicle soc: 31%
[lp-1  ] DEBUG 2023/04/04 12:17:56 vehicle range: 82km
[lp-1  ] DEBUG 2023/04/04 12:17:56 pv charge current: 7.62A = 13A + -5.38A (3712W @ 3p)
[lp-1  ] DEBUG 2023/04/04 12:17:56 max charge current: 7A
[site  ] DEBUG 2023/04/04 12:18:15 ----
[lp-1  ] DEBUG 2023/04/04 12:18:15 charge power: 41W
[site  ] DEBUG 2023/04/04 12:18:15 pv power: 5668W
[site  ] DEBUG 2023/04/04 12:18:16 battery soc: 100%
[site  ] DEBUG 2023/04/04 12:18:16 battery power: 8W
[site  ] DEBUG 2023/04/04 12:18:16 grid power: -4654W
[site  ] DEBUG 2023/04/04 12:18:16 site power: -4646W
[lp-1  ] DEBUG 2023/04/04 12:18:16 charge voltages: [241 243 249]V
[lp-1  ] DEBUG 2023/04/04 12:18:16 detected connected phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:18:16 charge currents: [7.02 7.02 7.01]A
[lp-1  ] DEBUG 2023/04/04 12:18:16 detected active phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:18:16 charge meter total import: 0.500kWh
[lp-1  ] DEBUG 2023/04/04 12:18:16 charger status: C
[lp-1  ] DEBUG 2023/04/04 12:18:16 soc estimated: 31.00% (vehicle: 31.00%)
[lp-1  ] DEBUG 2023/04/04 12:18:16 vehicle soc: 31%
[lp-1  ] DEBUG 2023/04/04 12:18:16 vehicle range: 82km
[lp-1  ] DEBUG 2023/04/04 12:18:16 pv charge current: 13.7A = 7A + 6.73A (-4646W @ 3p)
[lp-1  ] DEBUG 2023/04/04 12:18:16 max charge current: 13A
[site  ] DEBUG 2023/04/04 12:18:35 ----
[lp-1  ] DEBUG 2023/04/04 12:18:35 charge power: 8184W
[site  ] DEBUG 2023/04/04 12:18:35 pv power: 5669W
[site  ] DEBUG 2023/04/04 12:18:36 battery soc: 99%
[site  ] DEBUG 2023/04/04 12:18:36 battery power: 2346W
[site  ] DEBUG 2023/04/04 12:18:36 grid power: 1044W
[site  ] DEBUG 2023/04/04 12:18:36 site power: 3390W
[lp-1  ] DEBUG 2023/04/04 12:18:36 charge voltages: [239 239 248]V
[lp-1  ] DEBUG 2023/04/04 12:18:36 detected connected phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:18:36 charge currents: [12.8 12.8 12.6]A
[lp-1  ] DEBUG 2023/04/04 12:18:36 detected active phases: 3p
[lp-1  ] DEBUG 2023/04/04 12:18:36 charge meter total import: 0.500kWh
[lp-1  ] DEBUG 2023/04/04 12:18:36 charger status: C
[lp-1  ] DEBUG 2023/04/04 12:18:36 soc estimated: 31.00% (vehicle: 31.00%)
[lp-1  ] DEBUG 2023/04/04 12:18:36 vehicle soc: 31%
[lp-1  ] DEBUG 2023/04/04 12:18:36 vehicle range: 82km
[lp-1  ] DEBUG 2023/04/04 12:18:36 pv charge current: 8.09A = 13A + -4.91A (3390W @ 3p)
[lp-1  ] DEBUG 2023/04/04 12:18:36 max charge current: 8A
[lp-1  ] DEBUG 2023/04/04 12:18:44 set charge mode: now
[site  ] DEBUG 2023/04/04 12:18:44 ----

What type of operating system are you running?

Linux

Version

evcc version 0.115.0

[premultiply]

https://docs.evcc.io/docs/reference/configuration/site/#residualpower
https://docs.evcc.io/docs/reference/configuration/site/#maxgridsupplywhilebatterycharging
https://docs.evcc.io/docs/reference/configuration/interval/

[Lulaschkas]

Gleiches Verhalten bei folgenden Einstellungen:

site:
title: Zuhause
prioritySoc: 70
maxGridSupplyWhileBatteryCharging: 80
residualPower: 120
bufferSoc: 70

Gerade bei bufferSoc = 70% sollte er die Batterie ja als Puffer nutzen und nicht die Ladung komplett unterbrechen.
Stattdessen wird die Ladeleistung immer größer als der PV Überschusse eingestellt und danach auf 40W (0) gepegelt.

[Lulaschkas]

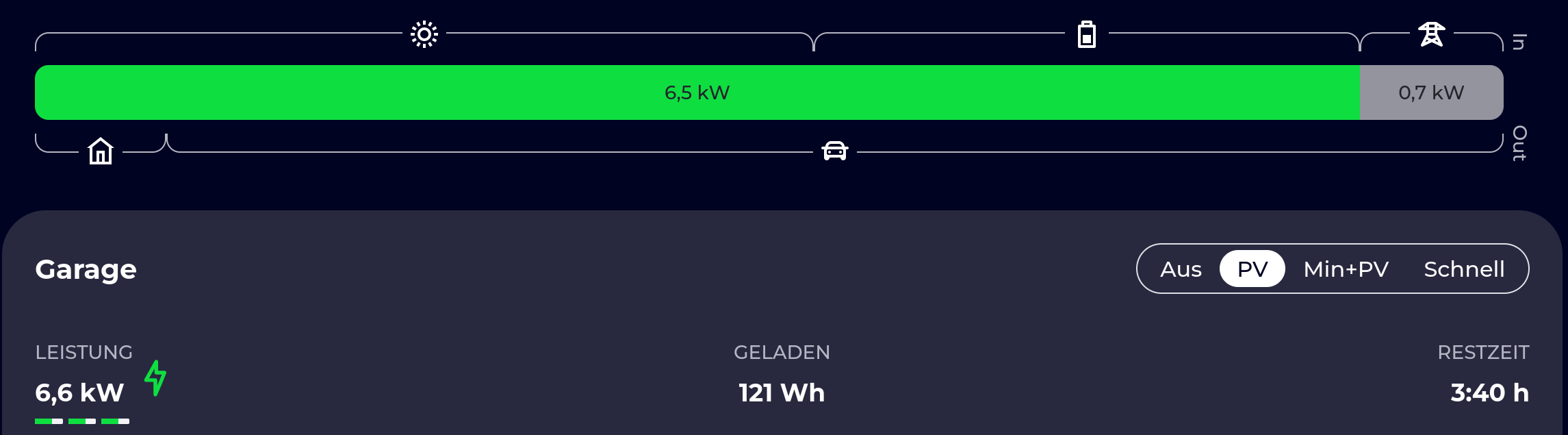

Hab gerade mal ein bisschen mit den Settings gespielt. Bekomme kein Szenario in welchem nur mit Überschuss (und nicht mit Netz+Batterie zusätzlich) geladen wird -> siehe Bild. Und danach springt das System immer auf 0W Ladeleistung um.

[premultiply]

Was ist das für ein Fahrzeug?
ZOE, Twingo, Smart?

[Lulaschkas]

Jo, ist nen Zoe 2020

[premultiply]

Den kann man dreiphasig nicht so regeln. [...]

Entweder einphasig laden oder minCurrent mal auf 10A oder höher.
