 This is the Control Toolbox, an efficient C++ library for control, estimation, optimization and motion planning in robotics.
 Please find the documentation [here](https://adrlab.bitbucket.io/ct)

-# Earlier Versions
+## Earlier Versions

 Earlier versions up to v2.3 are hosted on bitbucket, they can be found at https://bitbucket.org/adrlab/ct/wiki/Home

-# Licence Information

+## Overview
+
+This is the ADRL Control Toolbox ('CT'), an open-source C++ library for efficient modelling, control,
+estimation, trajectory optimization and model predictive control. The CT is applicable to a broad class of dynamic systems, but features additional modelling tools specially designed for robotics. This page outlines its general concept, its major building blocks and highlights selected application examples.
+
+The library contains several tools to design and evaluate controllers, model dynamical systems and solve optimal control problems.
+The CT was designed with the following features in mind:
+
+ - **Systems and dynamics**:
+	- intuitive modelling of systems governed by ordinary differential- or difference equations.
+
+ - **Trajectory optimization, optimal control and (nonlinear) model predictive control**:
+    - intuitive modelling of cost functions and constraints
+    - common interfaces for optimal control solvers and nonlinear model predictive control
+    - currently supported algorithms:
+      - Single Shooting
+      - iLQR
+ 	  - Gauss-Newton-Multiple-Shooting (GNMS)
+ 	  - Classical Direct Multiple Shooting (DMS)
+ 	- standardized interfaces for the solvers
+ 	  - IPOPT (first and second order)
+      - SNOPT
+      - HPIPM
+      - custom Riccati-solver
+
+ - **Performance**:
+ 	- solve large scale optimal control problems in MPC fashion.
+
+ - **Robot Modelling, Rigid Body Kinematics and Dynamics**:
+    - straight-forward interface to a state-of the art rigid body dynamics modelling tool.
+	- implementation of a basic nonlinear-programming-based inverse kinematics solver.
+
+ - **Automatic Differentiation**:
+    - first- and second order automatic differentiation of arbitrary vector-valued functions including cost functions and constraints
+    - automatic differentiation of rigid body dynamics
+    - derivative code generation for maximum efficiency
+
+ - **Simplicity**:
+    - all algorithm flavors and solver backends are available through simple configuration files.
+
+
+
+## Robot Application Examples
+
+The Control Toolbox has been used for Hardware and Simulation control tasks on flying, walking and ground robots.
+

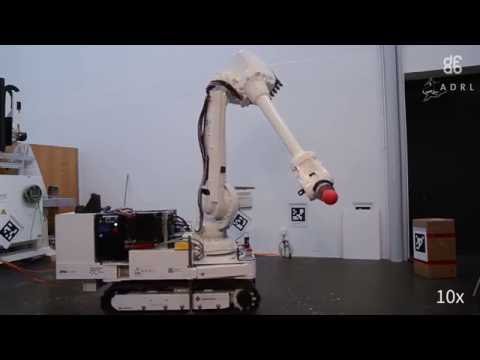

+[![ct example](https://img.youtube.com/vi/Y7-1CBqs4x4/0.jpg)](https://www.youtube.com/embed/Y7-1CBqs4x4)

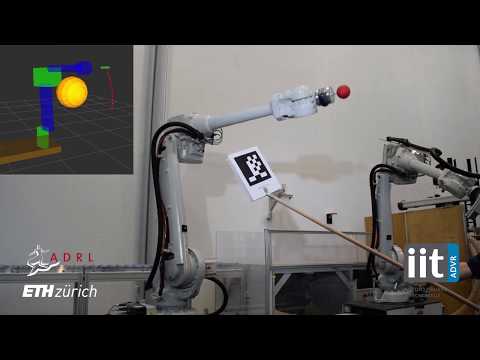

+[![ct_example](https://img.youtube.com/vi/vuCSKtP67E4/0.jpg)](https://www.youtube.com/embed/vuCSKtP67E4)

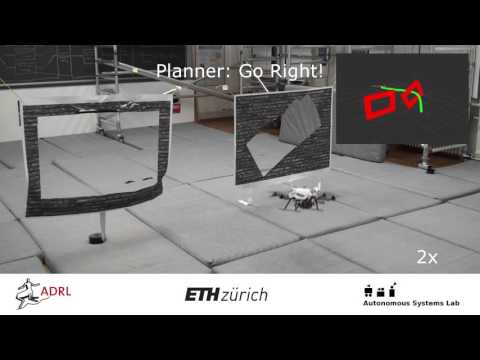

+[![ct_example](https://img.youtube.com/vi/rWmw-ERGyz4/0.jpg)](https://www.youtube.com/embed/rWmw-ERGyz4)
+[![ct_example](https://img.youtube.com/vi/rVu1L_tPCoM/0.jpg)](https://www.youtube.com/embed/rVu1L_tPCoM)
+
+
+## What is the CT?
+
+A common tasks for researchers and practitioners in both the control and the robotics communities
+is to model systems, implement equations of motion and design model-based controllers, estimators,
+planning algorithms, etc.
+Sooner or later, one is confronted with questions of efficient implementation, computing derivative
+information, formulating cost functions and constraints or running controllers in model-predictive
+control fashion.
+
+The Control Toolbox is specifically designed for these tasks. It is written entirely in C++ and has
+a strong focus on highly efficient code that can be run online (in the loop) on robots or other
+actuated hardware. A major contribution of the CT is are its implementations of optimal control
+algorithms, spanning a range from simple LQR reference implementations to constrained model predictive
+control. The CT supports Automatic Differentiation (Auto-Diff) and allows to generate derivative code
+for arbitrary scalar and vector-valued functions.
+We designed the toolbox with usability in mind, allowing users to apply advanced concepts such as
+nonlinear model predictive control (NMPC) or numerical optimal control easily and with minimal effort.
+While we provide an interface to a state-of-the art Auto-Diff compatible robot modelling software, all
+other modules are independent of the a particular modelling framework, allowing the code to be interfaced
+with existing C/C++ code or libraries.
+
+The CT has been successfully used in a variety of different projects, including a large number of
+hardware experiments, demonstrations and academic publications.
+Example hardware applications are online trajectory optimization with collision
+avoidance \cite giftthaler2017autodiff, trajectory optimization for Quadrupeds \cite neunert:2017:ral
+and mobile manipulators \cite giftthaler2017efficient as well as NMPC on ground robots \cite neunert2017mpc
+and UAVs \cite neunert16hexrotor. The project originated from research conducted at the Agile \& Dexterous
+Robotics Lab at ETH Zurich, but is continuously extended to cover more fields of applications and algorithms.
+
+
+## Scope of the CT
+
+ Software is one of the key building blocks for robotic systems and there is a great effort
+ in creating software tools and libraries for robotics.
+ However, when it comes to control and especially Numerical Optimal Control, there are not
+ many open source tools available that are both easy to use for fast development as well as
+ efficient enough for online usage.
+ While there exist mature toolboxes for Numerical Optimal Control and Trajectory Optimization,
+ they are highly specialized, standalone tools that due not provide sufficient flexibility
+ for other applications. Here is where the CT steps in. The CT has been designed from ground
+ up to provide the tools needed for fast development and evaluation of control methods while
+ being optimized for efficiency allowing for online operation. While the emphasis lies on control,
+ the tools provided can also be used for simulation, estimation or optimization applications.
+
+ In contrast to other robotic software, CT is not a rigid integrated application but can be
+ seen quite literal as a toolbox: It offers a variety of tools which can be used and combined
+ to solve a task at hand. While ease-of-use has been a major criteria during the design and
+ application examples are provided, using CT still requires programming and control knowledge.
+ However, it frees the users from implementing standard methods that require in-depth experience
+ with linear algebra or numerical methods. Furthermore, by using common definitions and types,
+ a seamless integration between different components such as systems, controllers or integrators
+ is provided, enabling fast prototyping.
+
+
+## Design and Implementation
+
+The main focus of CT is efficiency, which is why it is fully implemented in C++.
+Since CT is designed as a toolbox rather than an integrated application, we tried to provide
+maximum flexibility to the users. Therefore, it is not tied to a specific middleware such as
+ROS and dependencies are kept at a minimum. The two essential dependencies for CT are
+<a href="http://eigen.tuxfamily.org" target="_blank">Eigen</a> and
+<a href="http://github.com/ethz-asl/kindr" target="_blank">Kindr</a>
+(which is based on Eigen). This Eigen dependency is intentional since Eigen
+is a defacto standard for linear algebra in C++, as it provides highly efficient implementations
+of standard matrix operations as well as more advanced linear algebra methods.
+Kindr is a header only Kinematics library which builds on top of it and provides data types
+for different rotation representations such as Quaternions, Euler angles or rotation matrices.
+
+
+## Structure and Modules of the CT
+
+The Control Toolbox consists of three main modules. The Core module (ct_core), the Optimal
+Control (ct_optcon) module and the rigid body dynamics (ct_rbd) module.
+There is a clear hierarchy between the modules.
+That means, the modules depend on each other in this order, e.g. you can use the core module
+without the optcon or rbd module.
+ - The `core' module (ct_core) module provides general type definitions and mathematical tools.
+For example, it contains most data type definitions, definitions for systems and controllers,
+as well as basic functionality such as numerical integrators for differential equations.
+ - The `optimal Control' module (ct_optcon) builds on top of the `core' module and adds
+infrastructure for defining and solving Optimal Control Problems. It contains the functionality
+for defining cost functions, constraints, solver backends and a general MPC wrapper.
+ - The `rigid body dynamics' module (ct_rbd) provides tools for modelling Rigid Body Dynamics
+systems and interfaces with ct_core and ct_optcon data types.
+
+For testing as well as examples, we also provide the 'models' module (ct_models) which contains
+various robot models including a quadruped, a robotic arm, a normal quadrotor and a quadrotor
+with slung load.
+
+The four different main modules are detailed in the following.
+
+
+### ct_core
+
+ - Definitions of fundamental types for **control** and simulation, such as dynamic systems
+ (ct::core::System), states (ct::core::StateVector), controls (ct::core::Controller), or trajectories
+ (ct::core::DiscreteTrajectoryBase).
+ - **Numeric integration** (ct::core::Integrator) with various ODE solvers including fixed step
+ (ct::core::IntegratorEuler, ct::core::IntegratorRK4) and variable step (ct::core::IntegratorRK5Variable,
+ ct::core::ODE45) integrators, as well as symplectic (semi-implicit) integrators.
+ - Numerical approximation of Trajectory **Sensitivities** (ct::core::Sensitivity , e.g. by forward-integrating
+ variational differential equations)
+ - Common **feedback controllers** (e.g. ct::core::PIDController)
+ - Derivatives/Jacobians of general functions using **Numerical Differentiation** (ct::core::DerivativesNumDiff)
+ or **Automatic-Differentiation** with code-generation (ct::core::DerivativesCppadCG) and just-in-time (JIT)
+ compilation (ct::core::DerivativesCppadJIT)
+
+
+### ct_optcon (optimal control)
+
+ - Definitions for **Optimal Control Problems** (ct::optcon::OptConProblem) and **Optimal Control Solvers** (ct::optcon::OptConSolver)
+ - **CostFunction toolbox** allowing to construct cost functions from file and providing first-order and **second-order approximations**, see ct::optcon::CostFunction.
+ - **Constraint toolbox** for formulating constraints of Optimal Control Problems, as well as automatically computing their Jacobians.
+ - reference C++ implementations of the **Linear Quadratic Regulator**, infinite-horizon LQR and time-varying LQR (ct::optcon::LQR, ct::optcon::TVLQR)
+ - **Riccati-solver** (ct::optcon::GNRiccatiSolver) for unconstrained linear-quadratic optimal control problems, interface to high-performance
+ <a href="https://github.com/giaf/hpipm" target="_blank"> third-party Riccati-solvers</a> for constrained linear-quadratic optimal control problems
+ - **iterative non-linear Optimal Control** solvers, i.e. Gauss-Newton solvers such as iLQR (ct::optcon::iLQR) and
+ Gauss-Newton Multiple Shooting(ct::optcon::GNMS), constrained direct multiple-shooting (ct::optcon::DmsSolver)
+ - Non-Linear **Model Predictive Control** (ct::optcon::MPC)
+ - Definitions for Nonlinear Programming Problems (**NLPs**, ct::optcon::Nlp) and interfaces to third-party **NLP Solvers**
+ (ct::optcon::SnoptSolver and ct::optcon::IpoptSolver)
+
+
+### ct_rbd (Rigid Body Dynamics)
+
+ - Standard models for Rigid Body Dynamics
+ - Definitions for the state of a Rigid Body System expressed as general coordinates (ct::rbd::RBDState)
+ - Routines for different flavors of **Forward** and **Inverse Dynamics** (ct::rbd::Dynamics)
+ - Rigid body and end-effector **kinematics** (ct::rbd::Kinematics)
+ - Operational Space Controllers
+ - Basic soft **auto-differentiable contact model** for arbitrary frames (ct::rbd::EEContactModel)
+ - **Actuator dynamics** (ct::rbd::ActuatorDynamics)
+ - Backend uses <a href="https://bitbucket.org/mfrigerio17/roboticscodegenerator/" target="_blank">RobCoGen</a> \cite frigerioCodeGen,
+ a highly efficient Rigid Body Dynamics library
+
+
+### ct_models
+
+ - Various standard models for testing and evaluation including UAVs (ct::models::Quadrotor), ground robots,
+ legged robots (ct::models::HyQ), robot arms (ct::models::HyA), inverted pendulums etc.
+ - Means of creating linear approximation of these models
+
+
+## How to get started
+
+To get started with the control toolbox, please build the repository documentation with doxygen and follow the "Getting Started" tutorial.
+
+
+## Support
+- contact the devs: control-toolbox-dev@googlegroups.com
+
+
+## Acknowledgements
+
+### Contributors
+ - Markus Giftthaler
+ - Michael Neunert
+ - Markus Stäuble
+ - Farbod Farshidian
+ - Diego Pardo
+ - Timothy Sandy
+ - Jan Carius
+ - Ruben Grandia
+ - Hamza Merzic
+
+### Project Lead and Maintenance
+ - Markus Giftthaler, markusgft (at) gmail (dot) com
+ - Michael Neunert, neunertm (at) gmail (dot) com
+
+### Funding
+This software has been developed at the <a href="http://www.adrl.ethz.ch" target="_blank">Agile & Dexterous Robotics Lab</a>
+at <a href="http://www.ethz.ch/en" target="_blank">ETH Zurich</a>, Switzerland between 2014 and 2018.
+During that time, development has been made possible through financial support from the <a href="http://www.snf.ch/en/" target="_blank">Swiss National Science Foundation (SNF)</a>
+through a SNF Professorship award to Jonas Buchli and the National Competence Centers in Research (NCCR)
+<a href="https://www.nccr-robotics.ch/" target="_blank">Robotics</a> and <a href="http://www.dfab.ch/en/" target="_blank">Digital Fabrication</a>.
+
+
+## Licence Information
+
+The Control Toolbox is released under the
+<a href="https://choosealicense.com/licenses/bsd-2-clause/" target="_blank">BSD-2 clause license</a>.
 Please see LICENCE.txt and NOTICE.txt
+
+
+##  How to cite the CT
+
+    @misc{adrlCT,
+      author    = {Giftthaler, Markus and Neunert, Michael and {St\"auble}, Markus and Buchli, Jonas},
+      booktitle = {2018 IEEE International Conference on Simulation, Modeling, and Programming for Autonomous Robots (SIMPAR)},
+      author    = {Giftthaler, Markus and Neunert, Michael and {St\"auble}, Markus and Buchli, Jonas},
+      title     = "The {Control Toolbox} - An Open-Source {C++} Library for Robotics, Optimal and Model Predictive Control",
+      year      = 2018,
+      pages     ={123-129},
+      doi       ={10.1109/SIMPAR.2018.8376281},
+      month     ={May},
+      number    ={},
+      volume    ={},
+    }
+
+
+## Related Publications
+
+This toolbox has been used in, or has helped to realize the following academic publications:
+
+- Markus Giftthaler, Michael Neunert, Markus Stäuble and Jonas Buchli.
+“The Control Toolbox - An Open-Source C++ Library for Robotics, Optimal and Model Predictive Control”.
+IEEE Simpar 2018 (Best Student Paper Award).
+<a href="https://arxiv.org/abs/1801.04290" target="_blank">arXiv preprint</a>
+
+- Markus Giftthaler, Michael Neunert, Markus Stäuble, Jonas Buchli and Moritz Diehl.
+“A Family of iterative Gauss-Newton Shooting Methods for Nonlinear Optimal Control”.
+IROS 2018.
+<a href="https://arxiv.org/abs/1711.11006" target="_blank">arXiv preprint</a>
+
+- Jan Carius, René Ranftl, Vladlen Koltun and Marco Hutter.
+"Trajectory Optimization with Implicit Hard Contacts."
+IEEE Robotics and Automation Letters 3, no. 4 (2018): 3316-3323.
+
+- Michael Neunert, Markus Stäuble, Markus Giftthaler, Dario Bellicoso, Jan Carius, Christian Gehring,
+Marco Hutter and Jonas Buchli.
+“Whole Body Model Predictive Control Through Contacts For Quadrupeds”.
+IEEE Robotics and Automation Letters, 2017.
+<a href="https://arxiv.org/abs/1712.02889" target="_blank">arXiv preprint</a>
+
+- Markus Giftthaler and Jonas Buchli.
+“A Projection Approach to Equality Constrained Iterative Linear Quadratic Optimal Control”.
+2017 IEEE-RAS International Conference on Humanoid Robots, November 15-17, Birmingham, UK.
+<a href="http://ieeexplore.ieee.org/document/8239538/" target="_blank">IEEE Xplore</a>
+
+- Markus Giftthaler, Michael Neunert, Markus Stäuble, Marco Frigerio, Claudio Semini and Jonas Buchli.
+“Automatic Differentiation of Rigid Body Dynamics for Optimal Control and Estimation”,
+Advanced Robotics, SIMPAR special issue. November 2017.
+<a href="https://arxiv.org/abs/1709.03799" target="_blank">arXiv preprint</a>
+
+- Michael Neunert, Markus Giftthaler, Marco Frigerio, Claudio Semini and Jonas Buchli.
+“Fast Derivatives of Rigid Body Dynamics for Control, Optimization and Estimation”,
+2016 IEEE International Conference on Simulation, Modelling, and Programming for Autonomous Robots,
+San Francisco. (Best Paper Award).
+<a href="http://ieeexplore.ieee.org/document/7862380/" target="_blank">IEEE Xplore</a>
+
+- Michael Neunert, Farbod Farshidian, Alexander W. Winkler, Jonas Buchli
+"Trajectory Optimization Through Contacts and Automatic Gait Discovery for Quadrupeds",
+IEEE Robotics and Automation Letters,
+<a href="http://ieeexplore.ieee.org/document/7845678/" target="_blank">IEEE Xplore</a>
+
+- Michael Neunert, Cédric de Crousaz, Fadri Furrer, Mina Kamel, Farbod Farshidian, Roland Siegwart, Jonas Buchli.
+"Fast nonlinear model predictive control for unified trajectory optimization and tracking",
+2016 IEEE International Conference on Robotics and Automation (ICRA),
+<a href="http://ieeexplore.ieee.org/document/7487274/" target="_blank">IEEE Xplore</a>
+
+- Markus Giftthaler, Farbod Farshidian, Timothy Sandy, Lukas Stadelmann and Jonas Buchli.
+“Efficient Kinematic Planning for Mobile Manipulators with Non-holonomic Constraints Using Optimal Control”,
+IEEE International Conference on Robotics and Automation, 2017, Singapore.
+<a href="https://arxiv.org/abs/1701.08051" target="_blank">arXiv preprint</a>
+
+- Markus Giftthaler, Timothy Sandy, Kathrin Dörfler, Ian Brooks, Mark Buckingham, Gonzalo Rey,
+Matthias Kohler, Fabio Gramazio and Jonas Buchli.
+“Mobile Robotic Fabrication at 1:1 scale: the In situ Fabricator”. Construction Robotics, Springer Journal no. 41693
+<a href="https://arxiv.org/abs/1701.03573" target="_blank">arXiv preprint</a>
+
+- Timothy Sandy, Markus Giftthaler, Kathrin Dörfler, Matthias Kohler and Jonas Buchli.
+“Autonomous Repositioning and Localization of an In situ Fabricator”,
+IEEE International Conference on Robotics and Automation 2016, Stockholm, Sweden.
+<a href="http://ieeexplore.ieee.org/document/7487449/" target="_blank">IEEE Xplore</a>
+
+- Michael Neunert, Farbod Farshidian, Jonas Buchli (2014). Adaptive Real-time Nonlinear Model Predictive Motion Control.
+In IROS 2014 Workshop on Machine Learning in Planning and Control of Robot Motion
+<a href="http://www.adrl.ethz.ch/archive/p_14_mlpc_mpc_rezero.pdf" target="_blank">preprint</a>
