Replies: 2 comments
-
Soldered in a 100nF capacitor. Rotary Encoder + Button works flawless now! Menus + UI are editable as expected! |
Beta Was this translation helpful? Give feedback.
0 replies
-
Then your encoder is broken! |
Beta Was this translation helpful? Give feedback.
0 replies
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Uh oh!
There was an error while loading. Please reload this page.
Uh oh!
There was an error while loading. Please reload this page.
-
Hey!
with the newest version of deividAlfas firmware, I notice that the menu navigation is unusable (for me & my device). I cannot enter editing values, I cannot go to sleep mode, etc.
I have a KSGER with pcb V2.
While trying to sort out issues on my side, checking again which pcb version I have. I saw that there seems to be a capacitor missing on my pcb. See C4 on the pcb.
Can it be that the presence of this capacitor has an influence of the debouncing of the rotary encoder / button?
Can someone recommend, which capacitor I should solder in as a replacement?
This is a photo of my personal KSGER pcb. The solder point look like there was a capacitor, but it fell off because of bad soldering.

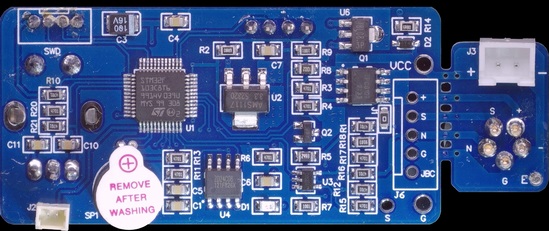

The following is the official photo of a KSGER v2 pcb from this github repository in the documentation. C4 is present there:
https://raw.githubusercontent.com/deividAlfa/stm32_soldering_iron_controller/master/Readme_files/boards/ksger_v2_7.jpg
@deividAlfa Maybe you know..?
