About vector graphics

[iacore]

Is it possible to use plutovg-like API to draw custom vector graphics in a fixed-sized region?

For example,

var canvas = dvui.canvas(.{.w=100, .h=100});
// canvas.ctx should be, for example, plutovg
canvas.ctx.moveTo(10, 10);
canvas.ctx.lineTo(20, 20);
canvas.draw();

I have a planned feature in my REPL application.

What I need to do for minimal PoC:

• reserve a fixed-sized area
• paint the area white
• draw a black line in that area. the visual should be clipped inside the area.

[iacore]

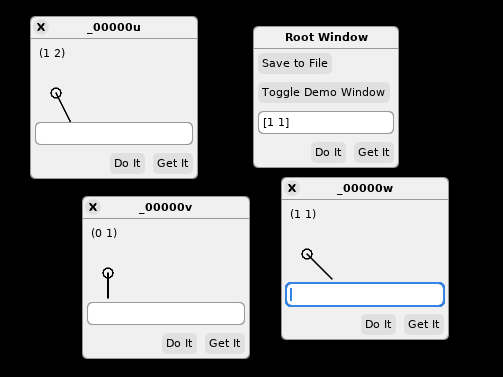

I've made it!
so the usage is that every two-element array like [0 1] has a vector display.

This is for debugging, of course. I'll add a tab widget like the one in gtoolkit later.

---

Here's a screenshot of gtoolkit. The view tabs ("Repositories", "JSON String") provide different views for the same data.

[david-vanderson]

That's awesome!!

…
