Visualization Page

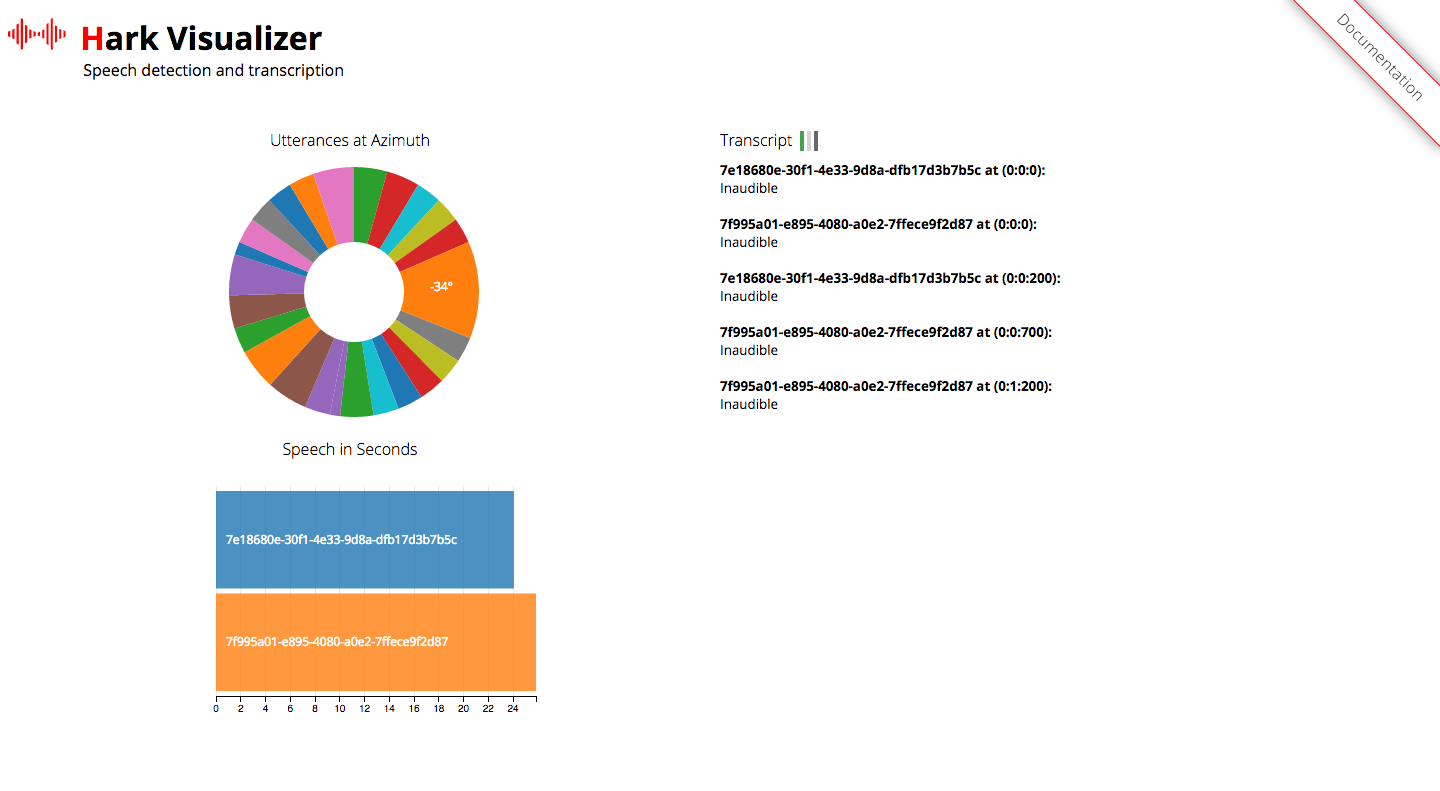

Visualization representations are two charts and a text transcription box. The Utterances at Azimuth chart represents all utterances spread over the range of azimuths detected in the audio file. The Speech in Seconds chart represents the aggregate time of all utterances detected for each speaker. Transcription represents the speech recognition results from Bing Speech API, including transcription errors which are represented by 'Inaudible'. These are typically sounds that were identified as speech by Hark Saas and sent to Bing for recognition, but were actually background noise. Each of the representations on this page loads and updates dynamically as the results become available to the backend server. Each chart is interactive, with the ability for the user to cross-filter the results by clicking on an element in the chart (a slice in the pie chart, or a bar in the bar chart).
