Artisan for probatone 25 typ2

[lau1984]

Hi

I am trying to run artisan connected via ethernet cable to our probatone 25 type 2.

I have been informed by probat that I have the wrong version installed (v2.4.6)

I believe the version I need is v1.1.0 but I am not sure as I can't install it, I have downloaded artisan-1.1.0 folder but can't install the program.

Any help would be greatly appreciated
Lau

[MAKOMO]

Please ignore the information from Probat and install v2.4.6 which runs fine with the Probat Probatone 25 Series II if it has the software option installed. You need to put your laptop on the same IP network as the machine and run the Probat Probatone 7" setup under menu Config >> Machines. Artisan will ask for the machines IP address.

[lau1984]

I have tried running to he latest version

It does ask for the IP network

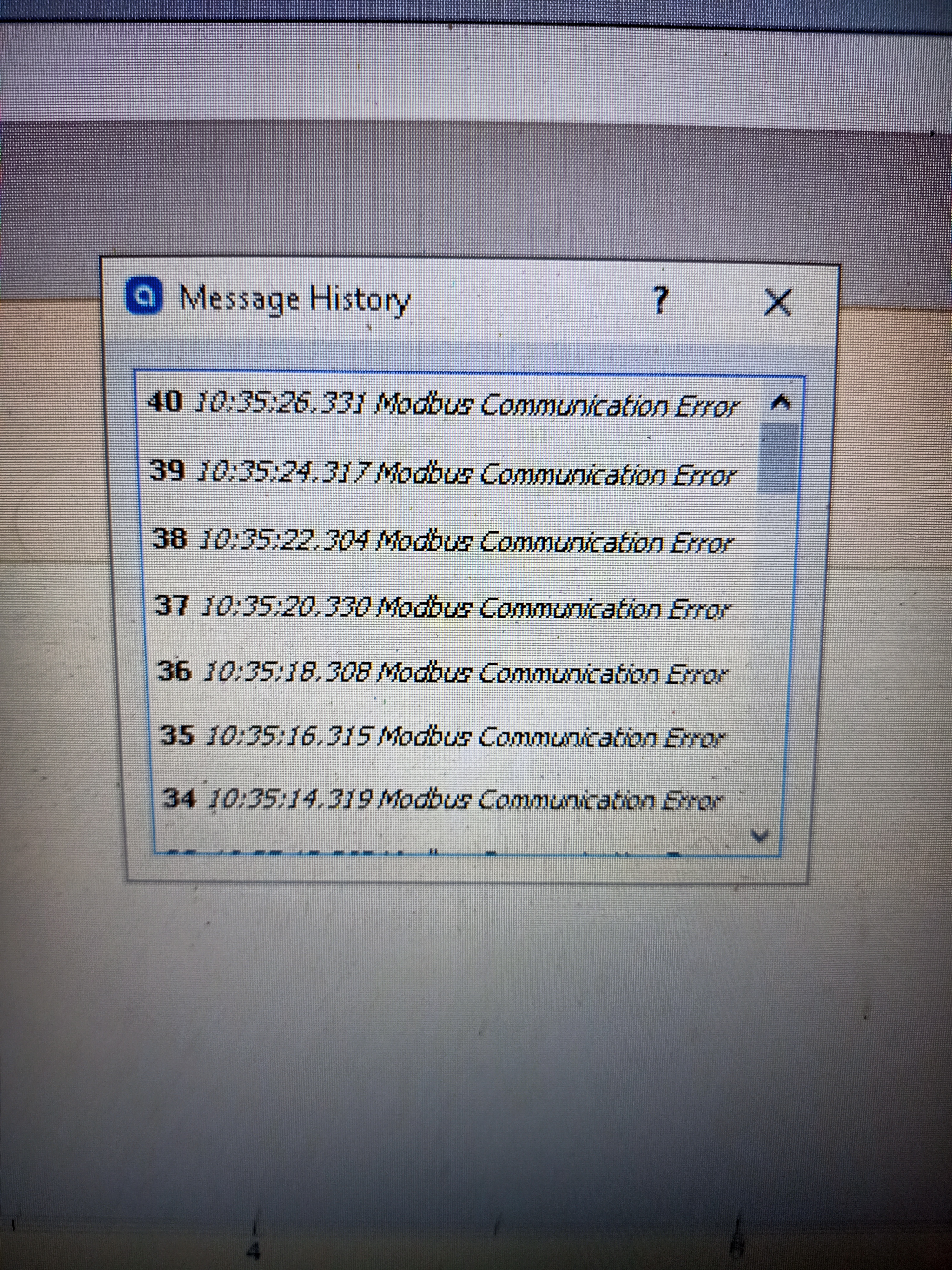

At first glance it seems like it's all good but it drops out and a modbus communication error occurred.

[MAKOMO]

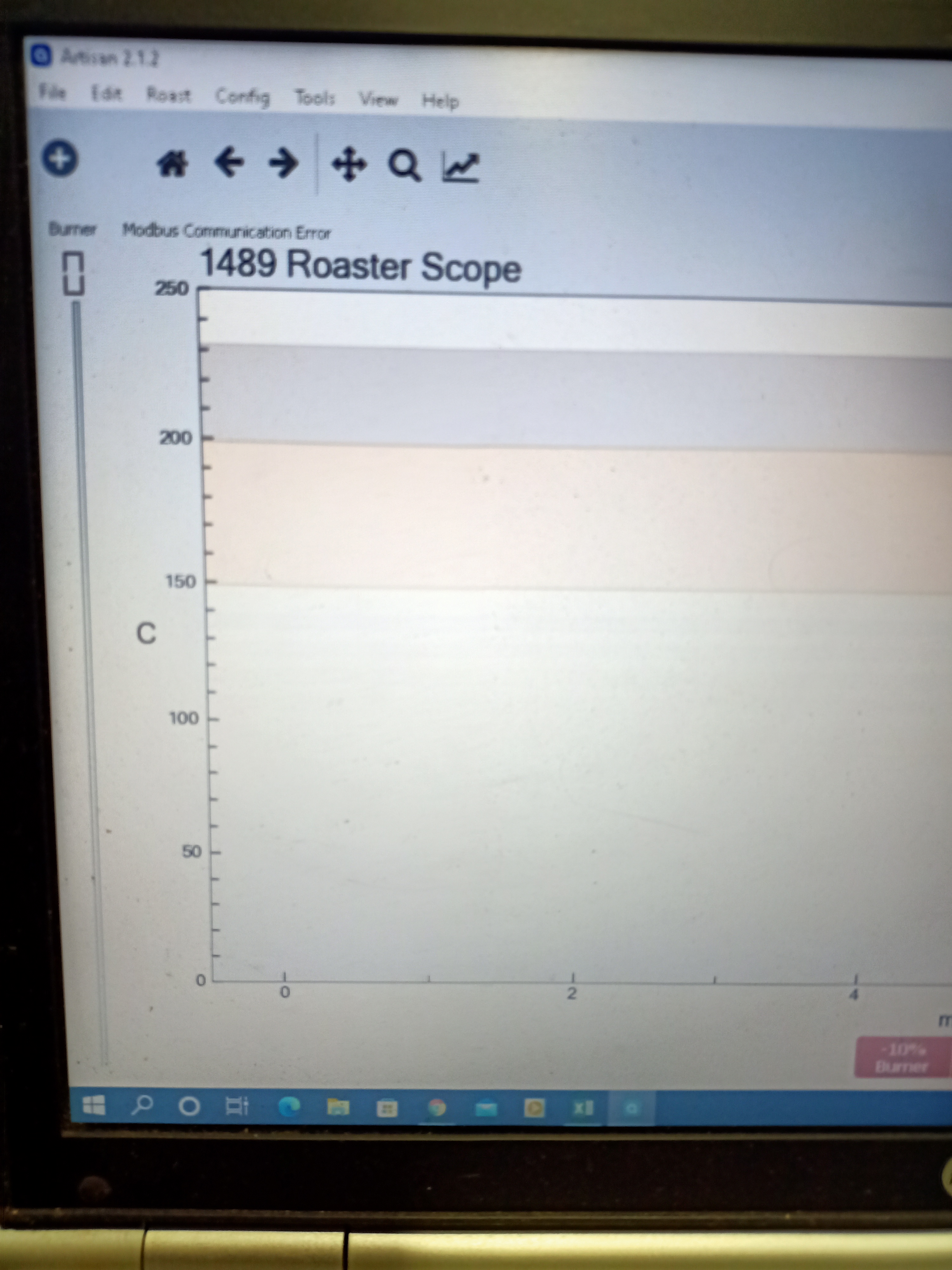

Not the latest version. I read 2.1.2 on your screen. Please install v2.4.6 and then run the machine configuration under menu Config as I told you. During this setup it will ask for the IP.

[lau1984]

Hi Marko

Thank you for your response

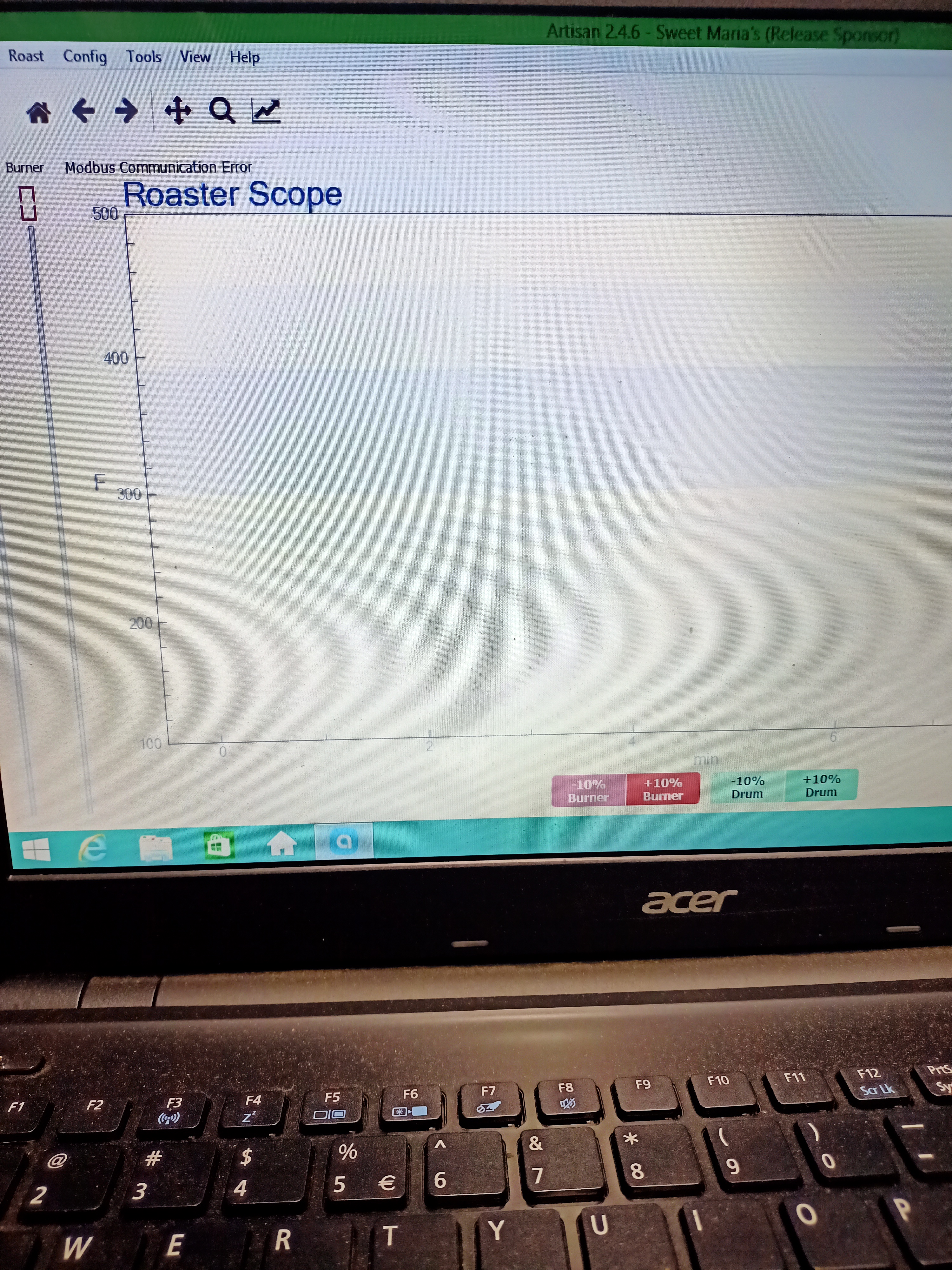

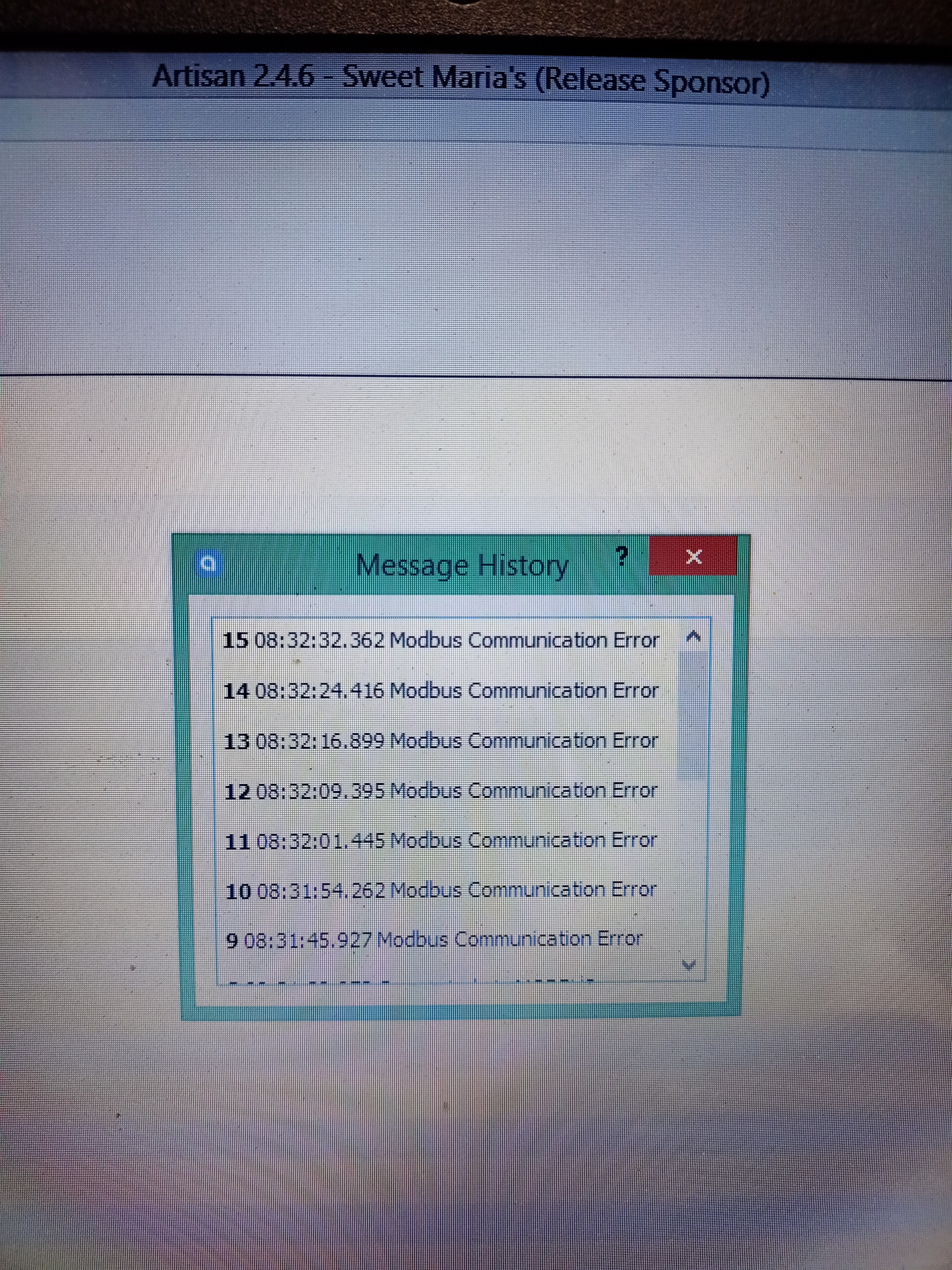

Here are some images with the latest version of artisan after config>machine>probat>probatone 7

[poundy]

Just checking, do you know what Marko meant by "must be on the same IP network" ? If so, can you confirm the IP address you used and subnet mask, for your PC, and the IP address you used in the machine setup? If not, this is your problem.... Without setting your PC's IP address so that it can communicate to the roaster, you won't get any IP communication.

[lau1984]

Hi poundy, I think so, but I am not really tech savvy!

The roaster is connected to the laptop via ethernet cable and I am using the IP number that appears on the probat software (pilot roaster shop)

The probat communicates with this software but not with artisan, am I missing something here?

Thanks for taking some time to help.

[poundy]

Sorry, I am not familiar with Probats, except on the periphery. Can you elaborate - do you have some Probat software on the same PC as you have Artisan, and it works correctly, but Artisan does not?

Fundamentally, the PC and the Probat roaster needs to be on the same "routing" network. That means you normally will need to have the IP address of your PC to be set into the same range as the roaster. That means you should tell us what your PC's IP address detaios are (including subnet mask) and what your roaster's IP address is, so that we can make sure these settings line up correctly.
