Nous a1, weird version, I couldn't find proper info

[zillion42]

I have bought some nous a1 which actually have some kind of esp, according to mac address. I spent quite some time trying to open it in all the wrong ways, I finally managed and then found this site...
https://kriwanek.de/index.php/de/homeautomation/esp8266-ger%C3%A4te/andere-ger%C3%A4te/576-neo-coolcam-smart-plug

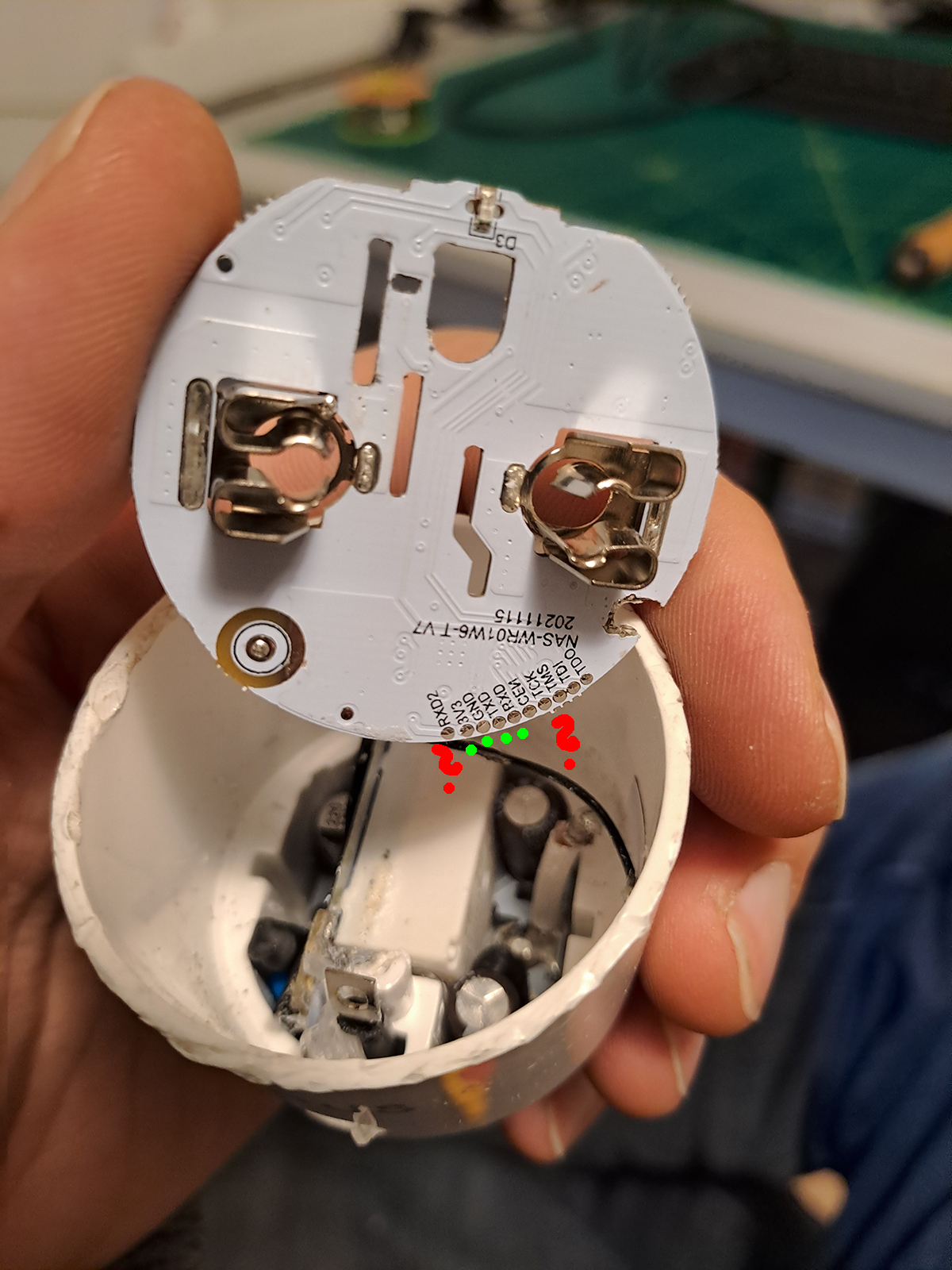

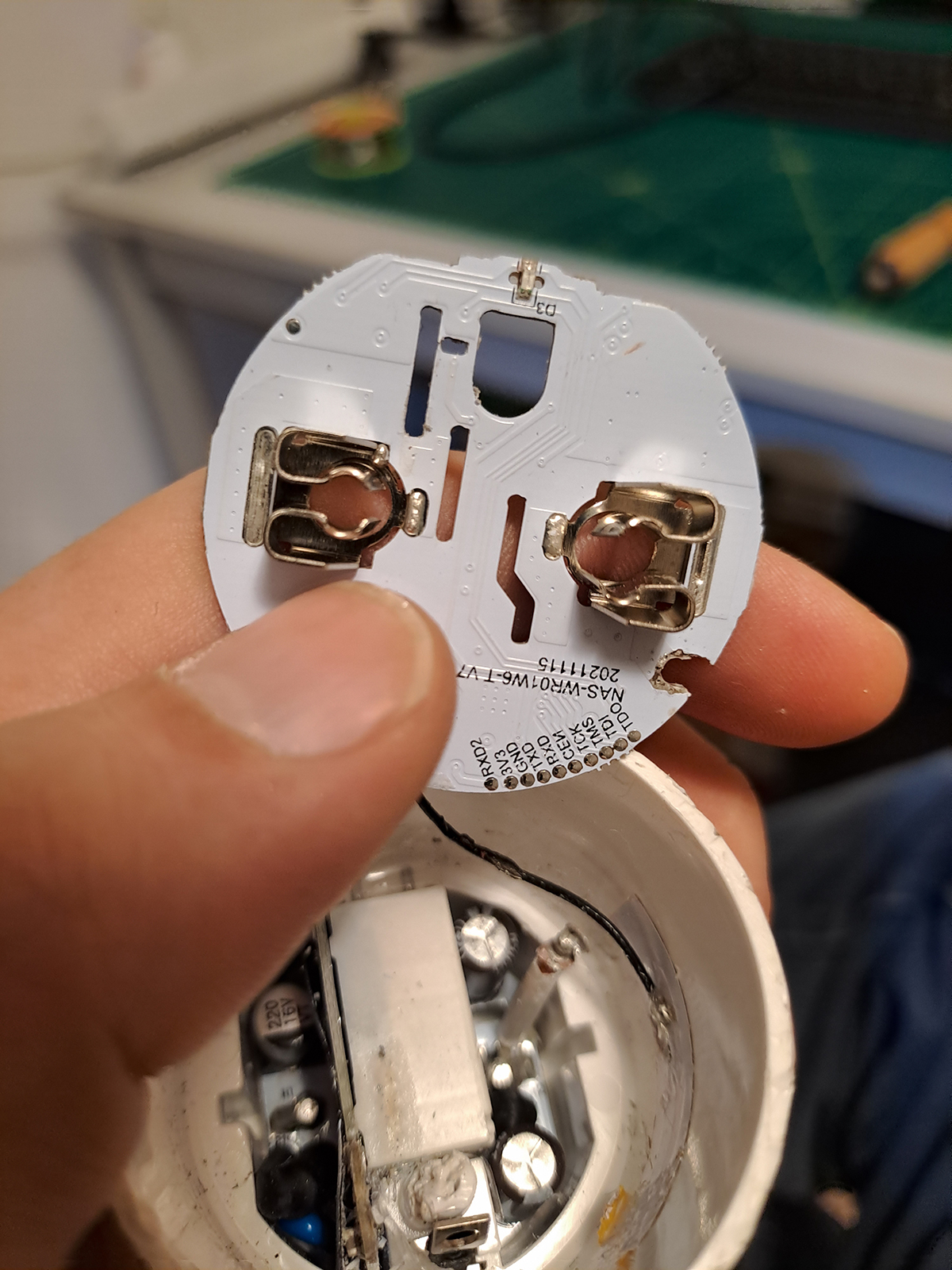

So I followed the instruction as best I could, desoldering the 6 contacts to reach the backside. Getting there I abused and broke the board quite a bit. I didn't try to flash it, because I am unsure which pin the GPIO is. Instead I put everything together again, resoldered the 6 pins and the broken piece and to my surprise it still works, with tuya app.

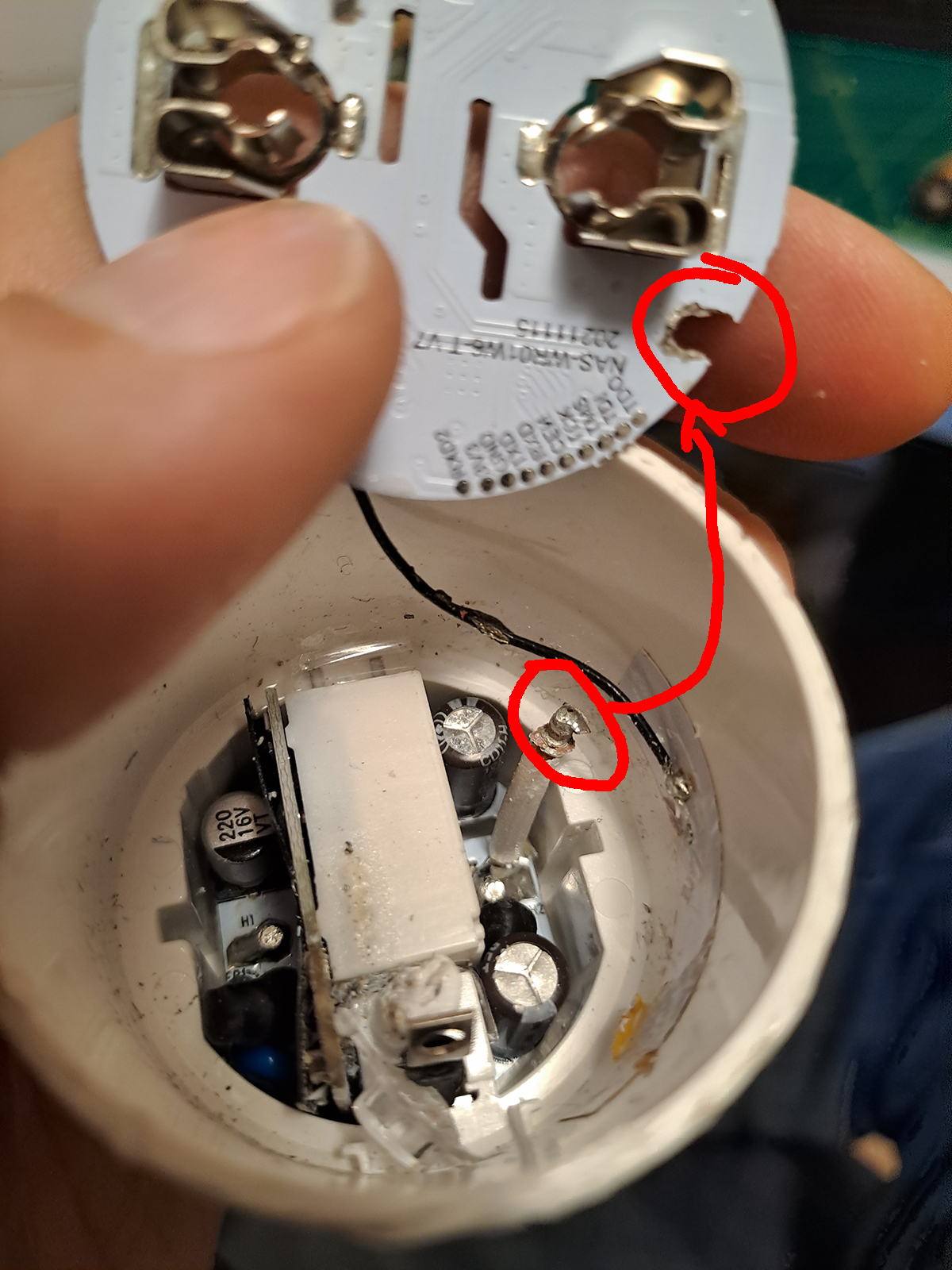

My questions now, what is that long thing that I broke out, where is the GPIO pin ? Will this work with the Neo Coolcam profile ? Thx in advance.

[sfromis]

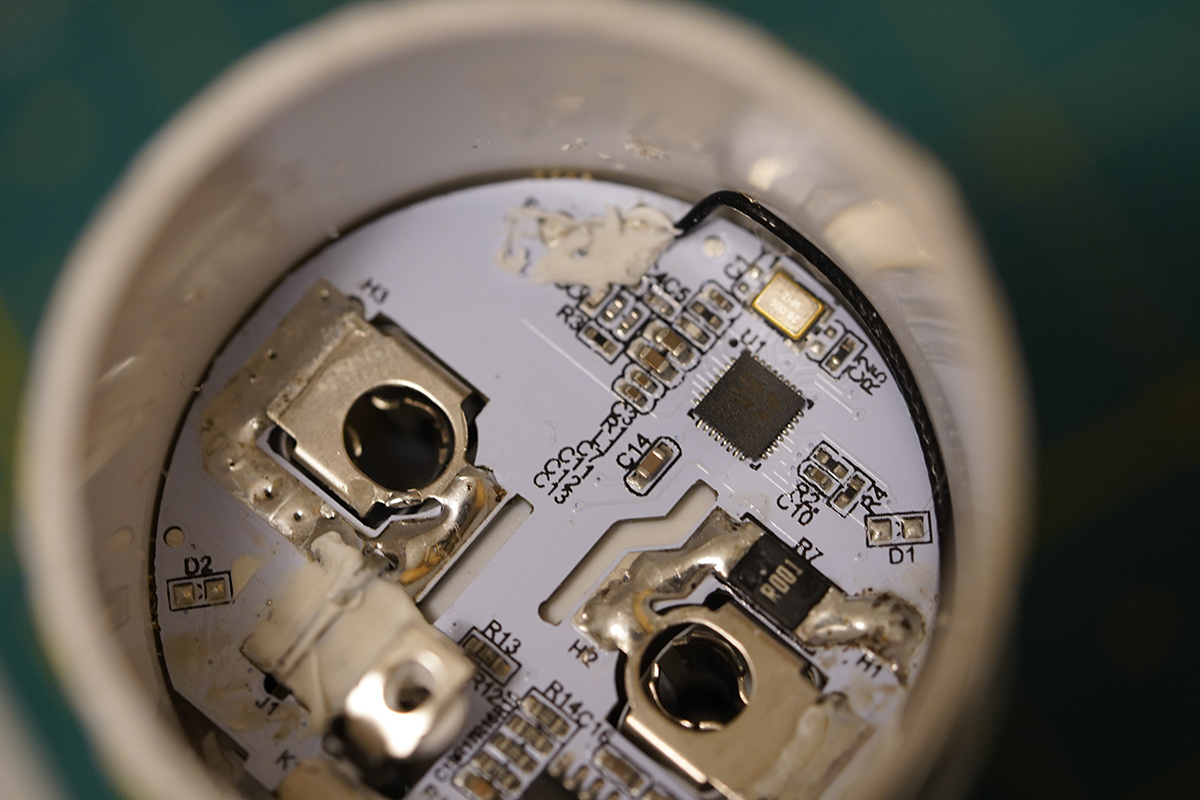

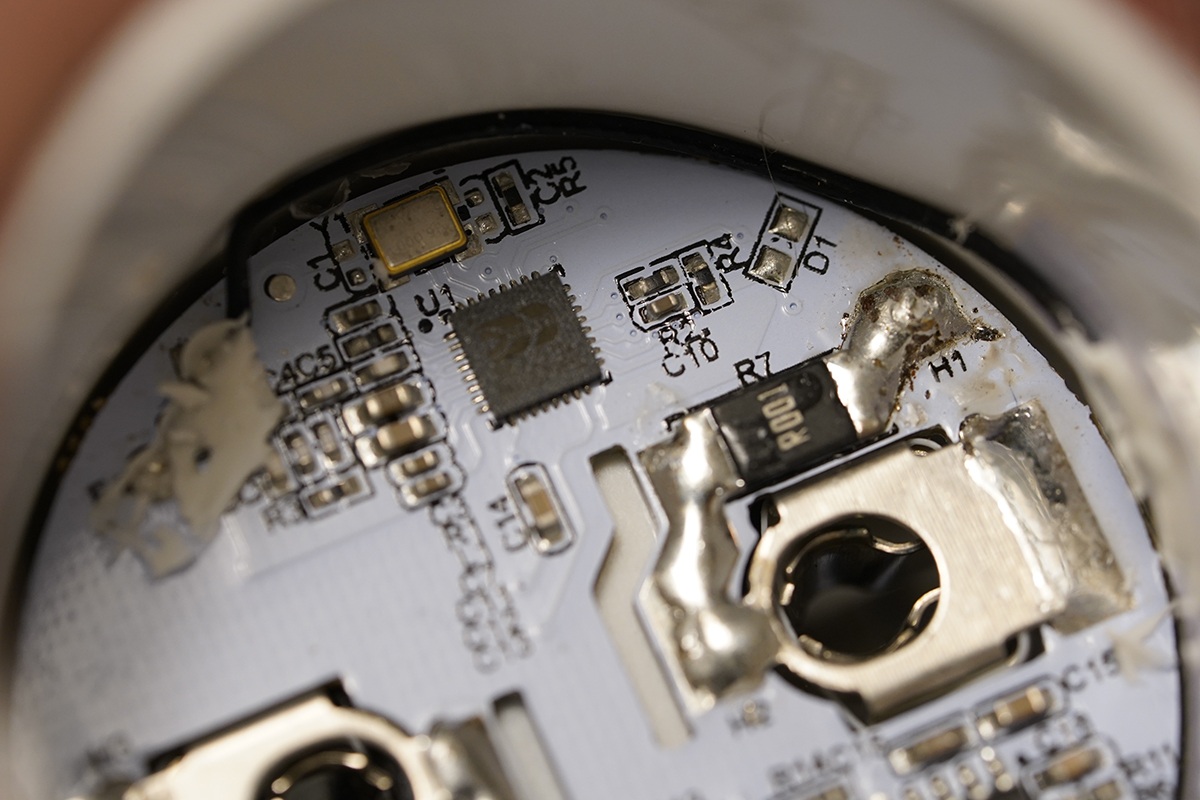

I see a Beken logo there, meaning not Tasmota-compatible. The variant working with Tasmota should be the Nous A1T.

[sfromis]

Depends on the context, but it means that you have some Espressif broadcasting an AP name. It is not always clear which device it is.

[sfromis]

No, that's not what I would reply. The chip in your image is from Beken and absolutely not Espressif. The AP name you look at is likely from some other device in the vicinity.

[zillion42]

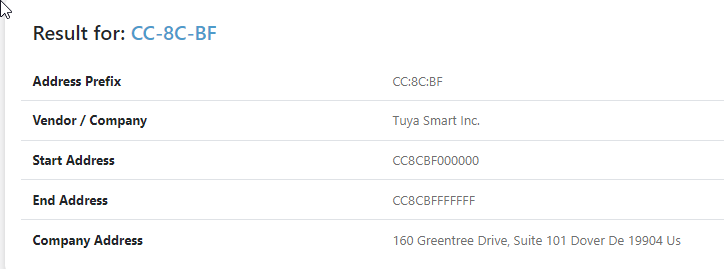

I guess you're right, my bad, it is in fact CC-8C-BF

I'm really wasting my time, and I am very unlucky with the stuff I order. I have nous a1t coming now, quite expensive though.

[sfromis]

Your existing plug may not be a waste, you may have luck with https://github.com/kuba2k2/libretuya/ or https://github.com/openshwprojects/OpenBK7231T_App/

[zillion42]

thx
