CPP resnet examples training acc does not increase,loss does not decrease

[ZHEQIUSHUI]

Description

(A clear and concise description of what the bug is.)

[14:35:41] F:\BaiduNetdiskDownload\incubator-mxnet\src\io\iter_mnist.cc:110: MNISTIter: load 60000 images, shuffle=1, shape=(16,784)
[14:35:41] F:\BaiduNetdiskDownload\incubator-mxnet\src\io\iter_mnist.cc:110: MNISTIter: load 10000 images, shuffle=1, shape=(16,784)
[14:35:41] F:\BaiduNetdiskDownload\incubator-mxnet\src\executor\graph_executor.cc:2061: Subgraph backend MKLDNN is activated.
[14:35:41] F:\Code\mxnet_classify_train\train.cpp:126: Epoch: 0
[14:35:42] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 1 Train Accuracy: 0.125 Train Loss: 2.30259
[14:35:42] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 2 Train Accuracy: 0.1875 Train Loss: 2.30146
[14:35:42] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 3 Train Accuracy: 0.1875 Train Loss: 2.30162
[14:35:42] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 4 Train Accuracy: 0.171875 Train Loss: 2.30361
[14:35:43] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 5 Train Accuracy: 0.15 Train Loss: 2.30592
[14:35:43] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 6 Train Accuracy: 0.135417 Train Loss: 2.30718
[14:35:43] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 7 Train Accuracy: 0.142857 Train Loss: 2.30081
[14:35:43] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 8 Train Accuracy: 0.132813 Train Loss: 2.30486
[14:35:43] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 9 Train Accuracy: 0.145833 Train Loss: 2.3007
[14:35:44] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 10 Train Accuracy: 0.13125 Train Loss: 2.31614
[14:35:44] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 11 Train Accuracy: 0.119318 Train Loss: 2.3079
[14:35:44] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 12 Train Accuracy: 0.114583 Train Loss: 2.30001
[14:35:44] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 13 Train Accuracy: 0.105769 Train Loss: 2.30863
[14:35:44] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 14 Train Accuracy: 0.102679 Train Loss: 2.3078
[14:35:45] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 15 Train Accuracy: 0.1125 Train Loss: 2.29704
[14:35:45] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 16 Train Accuracy: 0.109375 Train Loss: 2.30283
[14:35:45] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 17 Train Accuracy: 0.117647 Train Loss: 2.2879
[14:35:45] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 18 Train Accuracy: 0.111111 Train Loss: 2.30765
[14:35:46] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 19 Train Accuracy: 0.108553 Train Loss: 2.29667
[14:35:46] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 20 Train Accuracy: 0.10625 Train Loss: 2.30143
[14:35:46] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 21 Train Accuracy: 0.104167 Train Loss: 2.31742
[14:35:46] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 22 Train Accuracy: 0.107955 Train Loss: 2.3004
[14:35:46] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 23 Train Accuracy: 0.105978 Train Loss: 2.30668
[14:35:47] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 24 Train Accuracy: 0.104167 Train Loss: 2.3081
[14:35:47] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 25 Train Accuracy: 0.105 Train Loss: 2.31609
[14:35:47] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 26 Train Accuracy: 0.103365 Train Loss: 2.2924
[14:35:47] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 27 Train Accuracy: 0.101852 Train Loss: 2.29345
[14:35:47] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 28 Train Accuracy: 0.100446 Train Loss: 2.32269
[14:35:48] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 29 Train Accuracy: 0.0969828 Train Loss: 2.30808
[14:35:48] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 30 Train Accuracy: 0.0958333 Train Loss: 2.29545
[14:35:48] F:\Code\mxnet_classify_train\train.cpp:148: EPOCH: 0 ITER: 31 Train Accuracy: 0.0947581 Train Loss: 2.32122

What have you tried to solve it?

1.change lr
2.add LRScheduler

Environment

windows x64 cpp
mxnet-v1.7.x compile with mkl (no cuda)

[ZHEQIUSHUI]

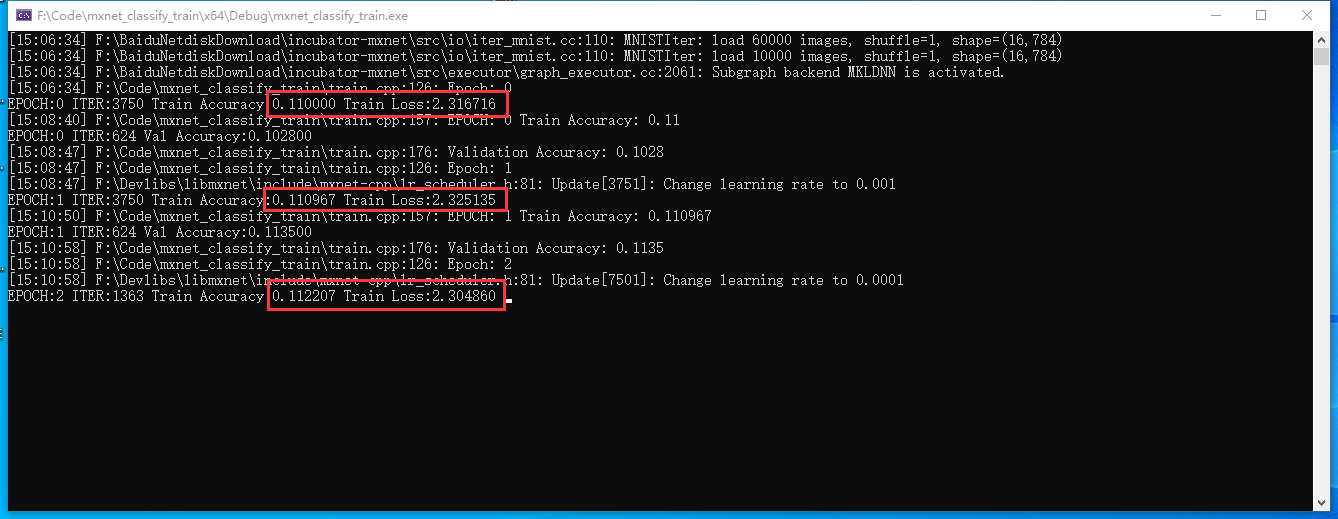

got almost same acc and loss for each epoch....

[ZHEQIUSHUI]

@roywei dalao!!help!!

[ZHEQIUSHUI]

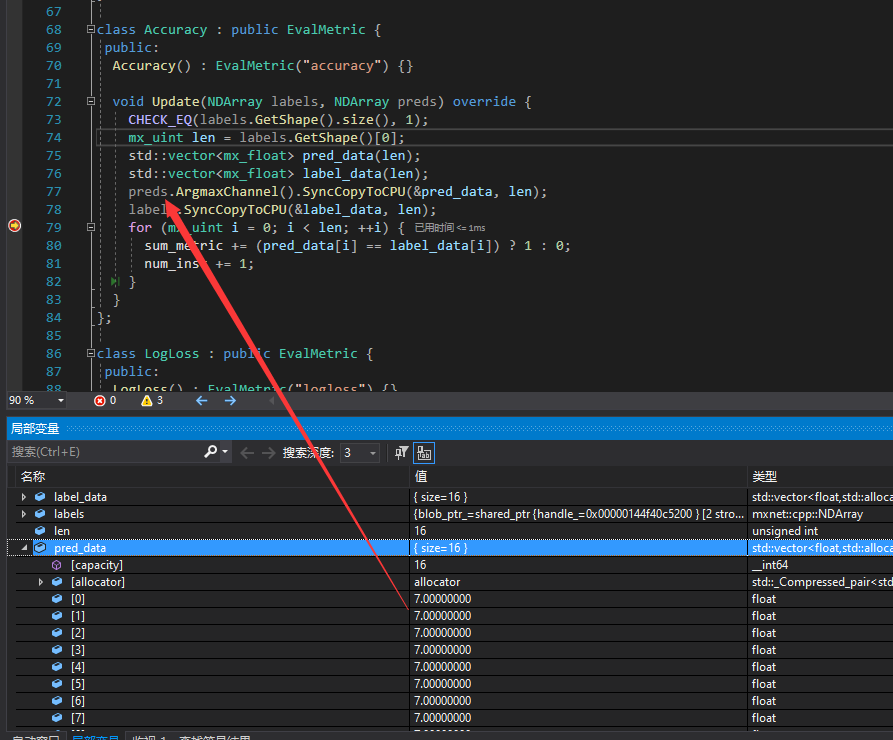

the pred vector got a same number???

[ZHEQIUSHUI]

now!i make sure mlp.cpp and alexnet.cpp can normal train(acc increase,loss decrease),but resnet is still wrong.....i don`t know the issue is in net or train process.

i try to put resnet in alexnet.cpp or alexnet in resnet.cpp,both of they got same issue(acc does not increase)...

[ZHEQIUSHUI]

@bgawrych

[bgawrych]

I don't know if you're using example from cpp-package/example/resnet.cpp, but I couldn't run this example - I fixed it by replacing
Xavier xavier = Xavier(Xavier::gaussian, Xavier::in, 2);
with:
Xavier xavier = Xavier(Xavier::gaussian, Xavier::out, 2);
First run worked fine and net was learning, but second run shows similar issue with yours.
Probably it's problem with parameter initialization.
I fixed it by replacing:

  //Xavier xavier = Xavier(Xavier::gaussian, Xavier::out, 2); <- Replace xavier with default Initializer
  Initializer init = Initializer();
  for (auto &arg : args_map) {
    std::cout << arg.first << std::endl;
    init(arg.first, &arg.second); // <- changed variable name
  }

[ZHEQIUSHUI]

@bgawrych it is work!!!thank you so much!!!!

but i use the same (dafult)parameter in python that is work.maybe there is any diff in internal.

[ZHEQIUSHUI]

// initialize parameters
    //Xavier xavier = Xavier(Xavier::gaussian, Xavier::out, 3.0f);
    Initializer init = Initializer();
    for (auto& arg : args_map) {
        //xavier(arg.first, &arg.second);
        init(arg.first, &arg.second);
    }

they are work!

[pengzhao-intel]

I don't know if you're using example from cpp-package/example/resnet.cpp, but I couldn't run this example - I fixed it by replacing
Xavier xavier = Xavier(Xavier::gaussian, Xavier::in, 2);
with:
Xavier xavier = Xavier(Xavier::gaussian, Xavier::out, 2);
First run worked fine and net was learning, but second run shows similar issue with yours.
Probably it's problem with parameter initialization.
I fixed it by replacing:

  //Xavier xavier = Xavier(Xavier::gaussian, Xavier::out, 2); <- Replace xavier with default Initializer
  Initializer init = Initializer();
  for (auto &arg : args_map) {
    std::cout << arg.first << std::endl;
    init(arg.first, &arg.second); // <- changed variable name
  }

Do you check-in the fix?

[ZHEQIUSHUI]

Fixed!the problem is in init!
