[ERROR GRT-0057] Missing track structure for layer metal1

[imcamino]

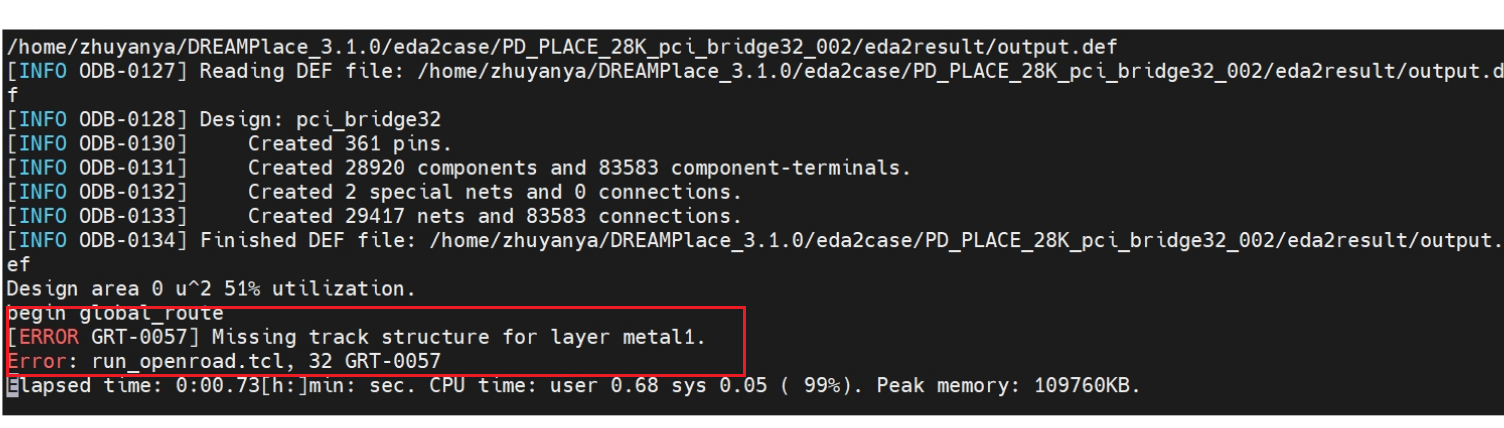

[ERROR GRT-0057] Missing track structure for layer metal1, how to fix? why the innovus does not exit flow when the log occurs??

[vijayank88]

@imcamino Which PDK are you using?

[imcamino]

i only load the lef&def after placement. the lef is ISPD2015 benchmark case。

[vijayank88]

I think for better understanding, provide the steps you executed in script.tcl and required input files.

[imcamino]

Thanks your reply . the script & input files plz download from attachment.
input_error_GRT-0057.zip

[maliberty]

Why are you mentioning innovus but showing an OpenROAD output?

[maliberty]

My first guess is that you need to run 'make_tracks'

[imcamino]

Thanks your advise, I will try again after make_tracks。by the way what value of pitch&offset should i set?

[vijayank88]

refer this file for make_tracks.tcl https://github.com/The-OpenROAD-Project/OpenROAD-flow-scripts/blob/master/docs/contrib/PlatformBringUp.md#metal-tracks-configuration and called during floorplan stage.
So you have to start from scratch again.
