Unknown error when using the Table Extraction interface to upload a PDF file

[ryansun117]

Description

Encountered an unknown error when trying to use the Table Extraction interface to upload a PDF file. The error message seems to be coming from here. My goal is to use the table extraction feature specifically. I am unsure if this is the correct way to run this application. Thank you.

To reproduce the error

1. Clone this repository and download the model and put it in docker/table-outline-server/table_outline/
2. Modify docker-compose.yaml in the root directory by adding network: host under service_name.build to bypass this issue.

service_name:
    container_name: name
    build:
      context: .
      network: host
    ...

4. Execute docker-compose up -d in the root directory

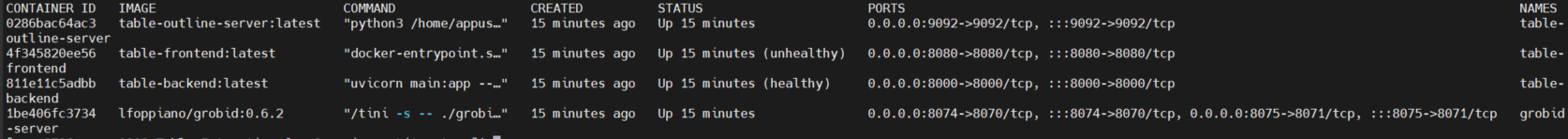

5. Check there are four containers, including table-outline-server, table-frontend, table-backend, and grobid-server, started up like in the below screenshot
6. Connect to http://0.0.0.0:8080/
7. Click to add a PDF file

Screenshots

[Sitoi]

1. Please run the commands:

docker logs -f table-backend
docker logs -f table-outline-server

2. Click to add a PDF file
3. Tell me the error messages
4. Please provide a sample PDF for testing purposes

[ryansun117]

1. Below are the output messages from docker logs -f table-backend and docker logs -f table-outline-server

$ docker logs -f table-backend
2023-03-24 11:08:59,190 [INFO] [uvicorn.error] Will watch for changes in these directories: ['/app']
2023-03-24 11:08:59,190 [INFO] [uvicorn.error] Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)
2023-03-24 11:08:59,190 [INFO] [uvicorn.error] Started reloader process [1] using statreload
/usr/local/lib/python3.9/site-packages/requests/__init__.py:102: RequestsDependencyWarning: urllib3 (1.26.15) or chardet (5.1.0)/charset_normalizer (2.0.12) doesn't match a supported version!
  warnings.warn("urllib3 ({}) or chardet ({})/charset_normalizer ({}) doesn't match a supported "

2023-03-24 11:09:00,168 [INFO] [uvicorn.error] Started server process [8]
2023-03-24 11:09:00,169 [INFO] [uvicorn.error] Waiting for application startup.
2023-03-24 11:09:00,169 [INFO] [uvicorn.error] Application startup complete.
2023-03-24 11:09:59,147 [INFO] [uvicorn.access] 127.0.0.1:35166 - "GET /ping HTTP/1.1" 200
2023-03-24 11:10:59,283 [INFO] [uvicorn.access] 127.0.0.1:35212 - "GET /ping HTTP/1.1" 200

$ docker logs -f table-outline-server
Failed to load OpenCL runtime
The checkpoint state_dict contains keys that are not used by the model:
  pixel_mean
  pixel_std
  proposal_generator.anchor_generator.cell_anchors.{0, 1, 2, 3, 4}
INFO:     Will watch for changes in these directories: ['/home/appuser/detectron2_repo']
INFO:     Uvicorn running on http://0.0.0.0:9092 (Press CTRL+C to quit)
INFO:     Started reloader process [1] using statreload
Failed to load OpenCL runtime
The checkpoint state_dict contains keys that are not used by the model:
  pixel_mean
  pixel_std
  proposal_generator.anchor_generator.cell_anchors.{0, 1, 2, 3, 4}
The checkpoint state_dict contains keys that are not used by the model:
  pixel_mean
  pixel_std
  proposal_generator.anchor_generator.cell_anchors.{0, 1, 2, 3, 4}
INFO:     Started server process [80]
INFO:     Waiting for application startup.
INFO:     Application startup complete.

2. This PDF with just one table was used for testing
   table.pdf

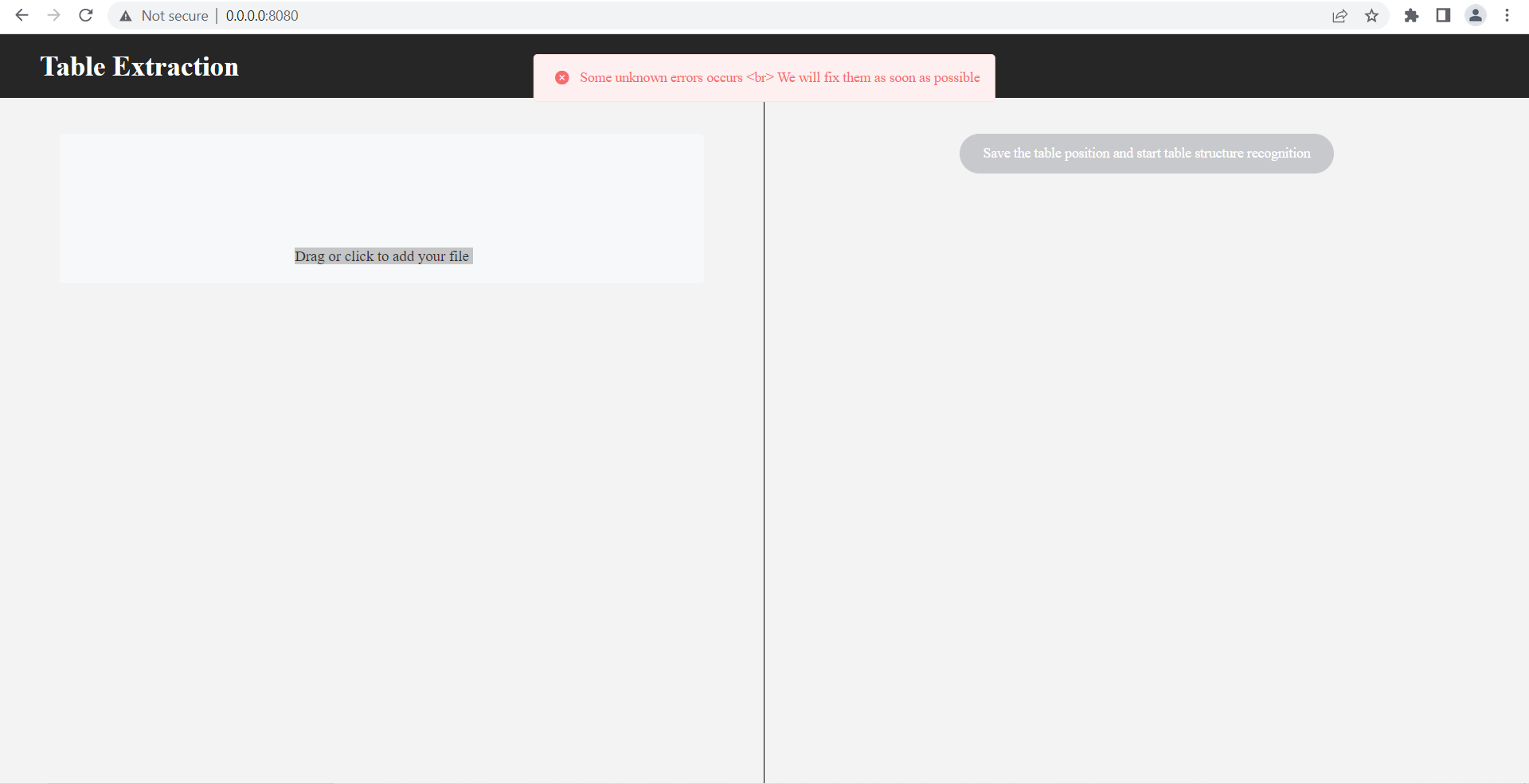

3. This error popped up on the interface after adding clicking to add the PDF file Some unknown errors occurs <br> We will fix them as soon as possible

   The output messages from docker logs -f table-backend and docker logs -f table-outline-server did not change after I clicked to add the PDF file

[Sitoi]

1. Do not use Safari
2. Access http://<your ip>:9092 using IP address, do not use localhost or 127.0.0.1. It should return {"detail":"Not Found"}
3. Modify the docker-compose file and add an environment variable

  table-backend:
    environment:
      - TZ=Asia/Shanghai
      - TABLE_TABLE_DETECT_SERVER_HOST=<your ip>

 TABLE_TABLE_DETECT_SERVER_HOST=10.10.10.10

[ryansun117]

1. I'm using Chrome

2. Yes, accessing http://<your ip>:9092 returns {"detail":"Not Found"}. Accessing http://0.0.0.0:9092 also returns {"detail":"Not Found"}. Both of these were before modifying docker-compose,yaml file and adding the environment variable TABLE_TABLE_DETECT_SERVER_HOST=<your ip>


3. After adding the environment variable, if I go to http://:8080/, the same error still showed up after I click to add a file. I added the environment variable and my ip under table-backend.environment and table-frontend.environment. Just to be sure, should I use my public IP or private IP?

Thank you for the help. Do you think this issue was caused by some network configuration? For context, the four docker containers are run on a remote server. Then, I use ssh tunnel to access the remote server on port 8080. That's why I was accessing http://0.0.0.0:8080 at first
