Questions on implementing XG Drum editor functionality

[now-its-dark]

Hi there,
I've been working with ctrlr for a bit now and getting more comfortable with the tool, but implementing specific logic has been tricky when I can't find an existing example to reference, as I am not a highly experienced programmer.

My goal is to replicate the XG drum parameter editing behavior found on the Yamaha QY700, where triggering the sound by playing a MIDI note on the keyboard sets it as the actively edited drum sound. The method for setting which drum sound is to receive a parameter change is done via NRPN, where one of the bytes is the MIDI note number. Ideally this could correlate with a set of drum maps/kits, so depending on which drum kit is chosen/active, the name of the currently edited drum sound in the kit would also change, when the corresponding midi note/key press is registered.

AFAIK, the easiest way to do this, would be to store the last played note as a variable and place that at the correct position in the MIDI message strings for all relevant modulators, but I haven't been able to find an example for recognizing the last played note.

The secondary behavior I'd really like to implement, is a "value has been changed" list, so rather than dumping every possible parameter in the panel, or saving and managing them manually, a list is generated dynamically, as adjustments to certain sounds are made. So it would be possible to send or save only modified parameters.

Any insight or reference points for generating a list of parameters, based on whether a parameter has been changed would be super helpful, if this has been done elsewhere.

Thanks so much!

[dnaldoog]

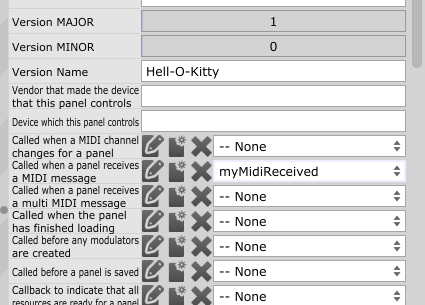

I found it difficult to understand the bit about the last note/key pressed, but you could record each noteOn in a table and build that table and later loop through the table to do what you want. Do that in in a midiReceived function:

--
-- Called when a panel receives a midi message (does not need to match any modulator mask)
-- @midi   CtrlrMidiMessage object
--

myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
    local s = midi:getSize()
    if midi:getType() == 3 then -- it is note on (4) = note off
        local noteNumber = midi:getData():getByte(1)
        collectNotes[noteNumber] = true
        --console(midi:getData():toHexString(1))
    end
    for k in pairs(collectNotes) do
        if k then
            --do something
            console("we registered " .. k)
        end
    end
end

collectNotes = {}

Record Incoming Note On_1_0.zip

---

The secondary behavior I'd really like to implement, is a "value has been changed" list, so rather than dumping every possible parameter in the panel, or saving and managing them manually, a list is generated dynamically, as adjustments to certain sounds are made. So it would be possible to send or save only modified parameters.

First set up a callback in each modulator that records that the modulator was changed:
Then add that record to a table and then finally with a button click loop through that table, which contains only values that were changed.

recordChange = function(--[[ CtrlrModulator --]] mod --[[ number --]], value --[[ number --]], source)
    if source ~= 4 then
        return
    end -- only activate if user changed value
    local nameOfMod = L(mod:getName())
    recorder[nameOfMod] = true
end

recorder = {}


-- CLICK BUTTON ON PANEL TO RUN CODE

runCodeForchangedModulators = function(--[[ CtrlrComponent --]] comp --[[ MouseEvent --]], event)
    for k in pairs(recorder) do
        if k then
            local value = panel:getComponent(k):getValue()
            console(string.format("%q was changed to a value of \187 %d",k,value))
        end
    end
end

Record which modulator was tampered with_1_0.zip

Good luck with the QY700 - I nearly bought one once!
