distinct CC# mapping table if tabindex= #541
-
|
A continuation of my first panel based on solutions provided in thread:540, thanks to #dnaldoog and #damiensellier. My goal is to reuse/recycle a limited quantity of CC#'s by essentially enabling a new meta table based on if tabindex= Have been doing some [dr frankenstein] hacks by scraping from a few demos and og Ctrlr threads but have not achieved life... yet. My script compiles:"ok" and executes when on tab=0 but not on tab=1 ??? still a noob at this... I have over 407 Sysex messages, for RealTime midi modulation controls, to send but only 32 knobs ;) per preset on the BCR. My Ctrlr panel currently receives CC# 127 from the BCR in +1 or -1 increments to switch thru tabs and returns a Sysex to the BCR to switch presets. So yes I can achieve 480 knobs but limited to 127 CC's from the BCR. I am attempting to send only a few direct CC messages and mainly Sysex to stay inline with Stephen Kay's programming of KARMA midi algorithms on the synth's and software he created, to avoid further "translation" headaches when integrating a final Ctrlr panel in the mix. Peace |
Beta Was this translation helpful? Give feedback.
Replies: 7 comments 28 replies
-
|
Do you mean that instead of mapping one incoming CC message to one control, you want to map that incoming CC message to multiple controls on different tabs? For example, you might have LFO1,LFO2,LFO3,LFO4 etc needing to send out 4 messages back to the Korg? |
Beta Was this translation helpful? Give feedback.
-
|
Greetings, Yes I think thats it. incoming CC#70 assigned to slider1 on tab=1 sending F0 something F7 I thought, if possible, then the 407 sysex messages could be divided into +/-12 tabs, each tab with 32 sliders using a pool of only 32 cc messages coming from the external BCR controller... or convince Uli to make this... |
Beta Was this translation helpful? Give feedback.
-
|
So each bank of controls is the same ie |
Beta Was this translation helpful? Give feedback.
-
|
I was looking thru the Johnson Amp Panel you made and trying to do something similar. Where the drop down menu's use an "external" range table lookup. but use tabs instead of drop down menu... |
Beta Was this translation helpful? Give feedback.
-
|
I can kinda of figure out the " if tabindex=0 then enable " |
Beta Was this translation helpful? Give feedback.
-
|
To where t[k] is the variable looked up in the table would have more than one named slider referenced for any given incoming cc#... so I thought to do a map per tab. myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi) meta = {} -- mapping = { etc... |
Beta Was this translation helpful? Give feedback.
-
|
This panel works! Code is changed and much more complex: myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
local s = midi:getSize()
if midi:getType() == 0 then -- it is a CC message
local number = midi:getData():getByte(1)
local value = midi:getData():getByte(2)
local cycle = mapping[number].groupof or 0
if cycle == 0 then
return
end
for i = 1, cycle do
local tmp_name = string.format("%s %d", mapping[number].name, i)
_m(tmp_name):setModulatorValue(value, false, true, false)
end
end
end
meta = {}
meta.__index = function(t, k) -- fallback value
-- writes a value to a hidden modulator
_c.d:setText(string.format("CC number #%d not mapped!", k))
t[k] = "nullbin"
--utils.warnWindow("Error", "number not mapped to a control") -- comment this out to die silently
return t[k]
end
mapping = {
[23] = {name = "resonance", groupof = 12},
[36] = {name = "cutoff", groupof = 11}
}
setmetatable(mapping, meta)
|
Beta Was this translation helpful? Give feedback.
-
|
|
Beta Was this translation helpful? Give feedback.
-
|
This table - mapping = {
[0]="bankselect", -- * MSB
[1]="mod1", -- * Joystick +Y (up)
[2]="mod2", -- * Joystick -Y (down)
[3]="", -- * not assigned
[4]="footcontroller", -- * Foot Pedal function
[5]="portamentoT", -- * Portamento Time
[6]="dataentry", -- * MSB of RPN and NRPN data
[7]="volume", -- * Volume
[8]="postfxpan", -- * Pan post FX insert
[9]="", -- not assigned
[10]="pan", -- * Panpot
becomes something like: mapping = {
[0] = {name = "bankselect", groupof = 1}, -- * MSB
[1] = {name = "mod", groupof = 2}, -- * Joystick +Y-Y (up)
[4] = {name = "footcontroller", groupof = 1}, -- * Foot Pedal function
[5] = {name = "portamentoT", groupof = 12}, -- * Portamento Time
[6] = {name = "dataentry", groupof = 1}, -- * MSB of RPN and NRPN data
[7] = {name = "volume", groupof = 12}, -- * Volume
[8] = {name = "postfxpan", groupof = 12}, -- * Pan post FX insert
[10] = {name = "pan", groupof = 12} -- * Panpot
}
|
Beta Was this translation helpful? Give feedback.
-
|
Simply beautiful !!! Perhaps more complex code but a whole lot better than my messy round about attempts... Would this need to be coded so that each slider on each tab has a different component label in this new map? It seems to me that conditional if tabindex= (enable true false) requires a component label to enable/disable. Or could it simple enable/disable the entire tab without reference to each component name? such as this: In the morning I will integrate this into my panel and continue m learning curve but I'm not exactly sure where to place the if tabindex= condition? Sleep is what is needed to see this more clearly... |
Beta Was this translation helpful? Give feedback.
-
|
Oh so do you mean that if a tab is visible, in other words the currently open tab, you only want that control sitting in that tab to change when the cc comes in? |
Beta Was this translation helpful? Give feedback.
-
|
Yes, this is the idea... |
Beta Was this translation helpful? Give feedback.
-
So the central design question is "Do you want a single control on the external controller to change banks of controls with different names or will the names be all the same?
P.S. 1 and 2 will make things much much more complex. Remembering that increasing complexity will lead to increasing bugs! To enable/disable or hide/show a component depending on the CC coming in would require a separate coding routine. Probably would call a function from the table mapping for such things. |
Beta Was this translation helpful? Give feedback.
-
|
This panel only sends out sysex from the controls in currently selected tab only (from CC in). I think this is what you want? myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
local currentTab = tonumber(_c.MYBIGTAB:getProperty("uiTabsCurrentTab") + 1)
-- tabs start at zero but uiSliders' names in this panel start at 1 - resonance 1 - 12 etc in tabs 0-11
local s = midi:getSize()
if midi:getType() == 0 then -- it is a CC message
local number = midi:getData():getByte(1)
local value = midi:getData():getByte(2) -- a function is called to construct the name from uiCurrentTab
local r = returnCcMappedControl(number, currentTab)
_m(r):setModulatorValue(value, false, true, false)
end
end
meta = {}
meta.__index = function(t, k) -- fallback value -- writes a value to a hidden modulator
_c.d:setText(string.format("CC number #%d not mapped!", k))
t[k] = "nullbin"
return t[k]
end
mapping = {
[23] = "resonance",
[36] = "cutoff"
}
setmetatable(mapping, meta)
returnCcMappedControl = function(num, tab)
local name = mapping[num]
if name == "nullbin" then
return name
else
return string.format("%s %d", name, tab)
end
end
|
Beta Was this translation helpful? Give feedback.
-
|
Will have a look in a second... Truly appreciate the engagement and your patience to understand my ask. I am starting to see how Lua code functions, as I am a very visual learner, simply reading about it doesn't always translates to understanding. Being able to have demo's and other examples to "deconstruct" is a huge part of how I learn. |
Beta Was this translation helpful? Give feedback.
-
|
I've just very quickly knocked this one together. So not fully tested! In this panel there is no If you have a record in myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
local currentTab = tonumber(_c.MYBIGTAB:getProperty("uiTabsCurrentTab") + 1) -- tabs start at zero but uiSliders start at 1
local s = midi:getSize()
if midi:getType() == 0 then -- it is a CC message
local number = midi:getData():getByte(1)
local value = midi:getData():getByte(2)
local r = returnCcMappedControl(number, currentTab)
_m(r):setModulatorValue(value, false, true, false)
end
end
meta = {}
meta.__index = function(t, k) -- fallback value in case a cc number comes in but there is no corresponding index in the table mapping
-- writes a value to a hidden modulator
_c.d:setText(string.format("CC number #%d not mapped!", k))
t[k] = "nullbin"
return t[k]
end
mapping = {
[0] = {n = "bankselect", multi = false, q = 1}, -- * MSB
--[1] = {n = "mod", multi = false, q = 1}, -- * Joystick +Y-Y (up)
--[4] = {n = "footcontroller", multi = false, q = 1}, -- * Foot Pedal function
--[5] = {n = "portamentoT", multi = false, q = 1}, -- * Portamento Time
--[6] = {n = "dataentry", multi = false, q = 1}, -- * MSB of RPN and NRPN data
[7] = {n = "volume", multi = false, q = 1}, -- * Volume
--[8] = {n = "postfxpan", multi = false, q = 1}, -- * Pan post FX insert
--[10] = {n = "pan", multi = true, q = 12}, -- * Panpot
[23] = {n = "resonance", multi = true, q = 12},
[36] = {n = "cutoff", multi = true, q = 11}
}
setmetatable(mapping, meta)
returnCcMappedControl = function(num, tab)
local name = mapping[num]
if name == "nullbin" then
return name
elseif mapping[num].multi then
if tab > mapping[num].q then
return "nullbin"
else
return string.format("%s %d", name.n, tab)
end
else
return name.n
end
end
map cc to sysex_5_0_version 4 altered.zip EDIT: |
Beta Was this translation helpful? Give feedback.
-
|
Testing v4 which works really well... Tab0 "picksup" the adjustments from the other tabs. having a look at v5 now... |
Beta Was this translation helpful? Give feedback.
-
|
V5 is a work of a master! as are the previous versions as well :) I can certainly live with simply "hiding" the sliders on tab0, as removing either tab0 and or the sliders on tab0 does crash the panel. |
Beta Was this translation helpful? Give feedback.
-
Beta Was this translation helpful? Give feedback.
-
|
Great! (Master = not!) But can you confirm that this panel - see attached - works with the Mac command key (I am sure it will but I just need to confirm) |
Beta Was this translation helpful? Give feedback.
-
|

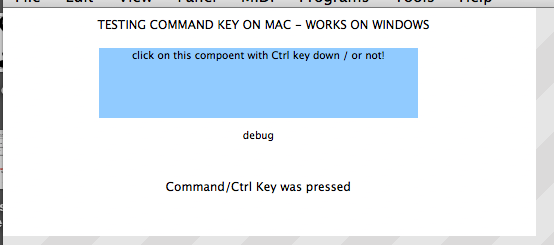

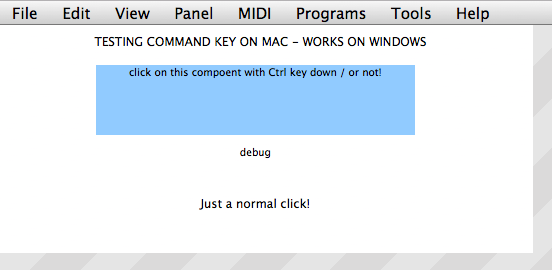

In the land of the blind, the one-eyed man is king ! Will send over my test panel... have done some mod's to it prior to integrating into my project panel. Ctrl Key Down: FUNCTIONS on Mac 10.13.6 running Ctrlr Version = 5.3.198, Build date = Tue Mar 15 15:53:07 PDT 2016, Branch = Nightly, Juce = 4.0.2, libusb = 1.0.19, liblo = 0.28
|
Beta Was this translation helpful? Give feedback.
-
|
In this version I tackle the problem of having separate controls in each tab. With this code you can put controls in any tab in any order as long as the name of the control suffix matches the myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
local currentTab = tonumber(_c.MYBIGTAB:getProperty("uiTabsCurrentTab"))
local s = midi:getSize()
if midi:getType() == 0 then -- it is a CC message
local number = midi:getData():getByte(1)
local value = midi:getData():getByte(2)
local r = returnCcMappedControl(number, currentTab)
_m(r):setModulatorValue(value, false, true, false)
end
end
meta = {}
meta.__index = function(t, k) -- fallback value in case a cc number comes in but there is no corresponding index in the table mapping
-- writes a value to a hidden modulator
_c.d:setText(string.format("CC number #%d not mapped!", k))
t[k] = "nullbin"
return t[k]
end
mapping = {
[0] = {n = "bankselect", multi = false, q = {nil}}, -- * MSB
[7] = {n = "volume", multi = false, q = {nil}}, -- * Volume
[21] = {n = "lfo delay", multi = true, q = {0}},
[23] = {n = "resonance", multi = true, q = {0,5,7,9,11}},
[36] = {n = "cutoff", multi = true, q = {0,1,2}}
}
setmetatable(mapping, meta)
returnCcMappedControl = function(num, tab)
local name = mapping[num]
if name == "nullbin" then
return name
elseif mapping[num].multi then
local found = false
for i, v in ipairs(mapping[num].q) do
if v == tab then
found = true
return string.format("%s %d", name.n, tab)
end
end
if found == false then
return "nullbin"
end
else
return name.n
end
end
|
Beta Was this translation helpful? Give feedback.
-
|
This is fantastic so as to avoid panel clutter !!! |
Beta Was this translation helpful? Give feedback.
-
|
Just reading quickly in diagonal this long thread... didn't look in detail to the solution I would have done the following:
This is requiring just a few lines of code... |
Beta Was this translation helpful? Give feedback.
-
yeah I know the announce BCR/BCF controllers look so much better and will probably have MCU integration included. Like every Behringer gear, they announce it, but maybe it won't ever be released. That's their problem. My main controller is the Midi Fighter Twister with 4x4knobs x4 banks it's my favorite CC controller for the moment. |
Beta Was this translation helpful? Give feedback.
-
|
This version fixes some crashes in map cc to sysex_5_3.panel.zip and handles negative sysex mapped from positive CC 0-127 myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi)
local currentTab = tonumber(_c.tabs:getProperty("uiTabsCurrentTab") + 1) -- tabs start at zero but uiSliders start at 1
local s = midi:getSize()
if midi:getType() == 0 then -- it is a CC message
local number = midi:getData():getByte(1)
local value = midi:getData():getByte(2)
local r, val = returnCcMappedControl(number, currentTab, value)
_m(r):setModulatorValue(val, false, true, false)
end
end
meta = {}
meta.__index = function(t, k) -- fallback value in case a cc number comes in but there is no corresponding index in the table mapping
console(string.format("CC number #%d not mapped!", k))
-- writes a value to a hidden modulator
t[k] = {n = "nullbin", multi = false, min = 0}
return t[k]
end
mapping = {
[7] = {n = "volume", multi = false, q = 1, min = 0},
[23] = {n = "knobA", multi = true, q = 3, min = 0},
[24] = {n = "knobB", multi = true, q = 3, min = 0},
[25] = {n = "knobC", multi = true, q = 3, min = 0},
[26] = {n = "knobD", multi = true, q = 3, min = 0},
[27] = {n = "knobE", multi = true, q = 3, min = 0},
[28] = {n = "knobF", multi = true, q = 3, min = 0},
[29] = {n = "knobG", multi = true, q = 3, min = 50}, --50/+50
[30] = {n = "knobH", multi = true, q = 3, min = 0},
[31] = {n = "knobI", multi = true, q = 3, min = 0},
[127] = {n = "BCRpresets", multi = false, q = 1, min = 0}
}
setmetatable(mapping, meta)
returnCcMappedControl = function(num, tab, value)
local name = mapping[num].n
local valmap = mapping[num].min or 0
local value = value - valmap
local ismulti = mapping[num].multi
local q = mapping[num].q
if name == "nullbin" then
return name, value
elseif ismulti then
if tab > q then
return "nullbin", value
else
return string.format("%s %d", name, tab), value
end
else
return name, value
end
end
|
Beta Was this translation helpful? Give feedback.
-
|
Ah right ok, misunderstood your question... Pre-emptive answers to questions not yet posed! love it! Again and always thank you to everyone chiming into this long, forked, thread. |
Beta Was this translation helpful? Give feedback.
-
|
Sorry for delayed answer... I wrote a function to mute/unmute all modulators. You need to check for dynamic modulators only. Now, for your case, you have 2 ways for doing that: For both methods, you use them in a method Tab_OnChange (on uiTabs, called when current tab is changed): |
Beta Was this translation helpful? Give feedback.
-
|
This is truly expanded my horizons… thank you. Will look at this, in detail, tomorrow and try it to mix this script with other solutions. Already see some interesting usages I had not thought of previously. Thank you |
Beta Was this translation helpful? Give feedback.
I've just very quickly knocked this one together. So not fully tested!
In this panel there is no
cutoff 12but the panel doesn't crash. There are also single controlsbankselectandvolumeso you can now do CC mapping for single controls as well as multiple controls with the same name in each tab, although as I said there is nocutoff 12intab 11. If the table keymultiis set tofalsethe table keyqis never accessed, but I just default it to1.If you have a record in
mappingbut no corresponding Ctrlr object, the panel will crash.myMidiReceived = function(--[[ CtrlrMidiMessage --]] midi) local currentTab = tonumber(_c.MYBIGTAB:getProperty("uiTabsCurrentTab") + 1) -- tabs start a…
