Unable to export restricted instances on MAC OS 12.4 Monterey

[synthmania67]

Hi there, I'm struggling over this message exporting any instance as vst on MAC OS 12.4.

What am I doing wrong?

[damiensellier]

You are doing nothing wrong, Monterey probably changed its way to connect apps to the finder Open/save window.
I saw the same error with another app using the native Save dialog.

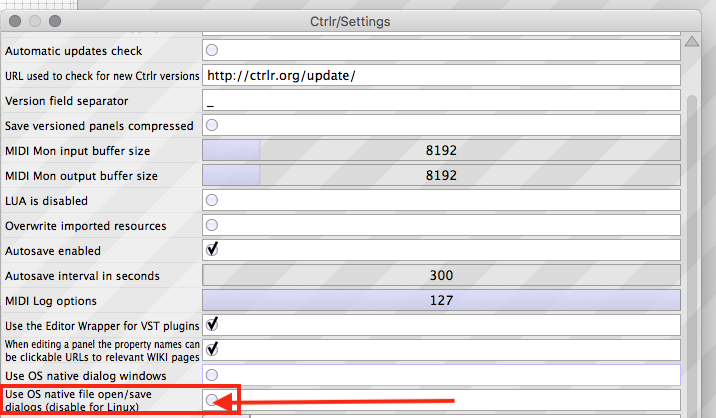

Maybe you can try changing this preference in Ctrlr MENU > EDIT > PREFERENCES :

untick the box "Use OS native file Open/save dialogs"

You'll probably get an ugly but working file browser export window instead.
Let us know if it's working this way.

Are you Paolo from SynthMania?

[synthmania67]

Hi, thanks a lot. It works, but the vst3 has no menu.
No, I`m not Paolo. My website is "https://synthmania.de" :-)

[damiensellier]

Hi,

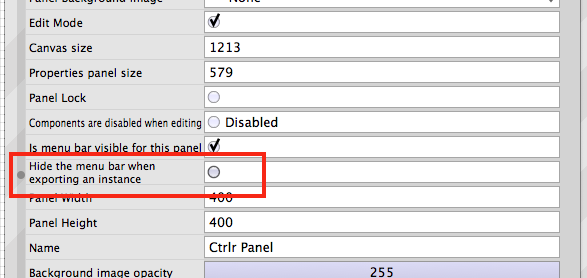

1. Can you please check if you unticked the "hide menu bar when exporting an instance" ? It's in the right side property pane.


If the setting must show the bar on the exported instance, you probably have the same problem as @puffer3 in this thread : #459

2. exporting VST3 has some major naming problem. Unlike the VST2, VST3 instances' panel-names are not properly recognized in DAWs. VST3 exported instances cannot change their name and still have the stock "Instigator | Ctrlr" naming. So you have to export a VST3 blank instance from Xcode with the proper plugin name beforehand, and it's a pain in the *** to be honnest. This topic has been detailed here :
   Panel Name and Author Name (Ctrlr|Instigator) don't change while exported as VST2 & VST3 #394 (reply in thread)

So, I highly recommand using VST2 as long as you can. Or you need to prepare a custom Ctrlr VST3 instance beforehand to go ahead in your project.

3. Paolo or not, you're very welcome on this board! have a good time with Ctrlr and don't hesitate to ask anything.

Damien

[synthmania67]

Hi Damien, sorry for my late reply.
Now I tried different versions of CTRLR, but every version is buggy. Some versions don't export all graphics, another version is not compatible with newer systems or other things happen. I have no clue why there is no 100% working version available for MAC.
I'll give up now...

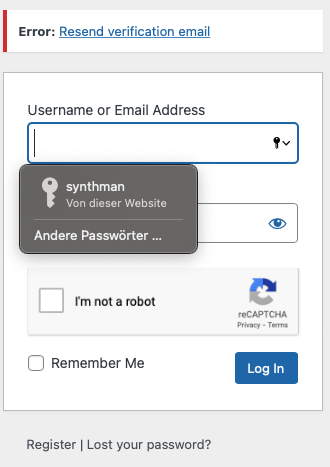

At the original site "Ctrlr.org" I can't log in anymore. I saw there a discussion with an attached file which I need. But no log in, no file.

https://ctrlr.org/forums/topic/looking-for-the-basic-sysex-receive-send-panel/

All in all it is very frustrating.

[synthmania67]

[dnaldoog]

Hi @synthmania67

this should be the file you are looking for!

https://sourceforge.net/projects/ctrlr-utilities/files/GSDR/

[synthmania67]

Thank you very much. Your tool helps me to understand some things.

[puffer3]

omg i had no idea there was a solution to this export issue. Thanks so much I dont have to bounce from my laptop anymore!! @damiensellier you are a boss
