Hi, welcome along. |
Beta Was this translation helpful? Give feedback.
-
|
Hi, with pleasure: composition:
what I wish to achieve:
a second task (for later on...) would be edit: a third task would be to create a snapshot section for those 40 color and 20 option knobs. because I already fear that the preset section wont have any interference at all on the buttons in CTRLR. I guess that's true, so it would be easier to create a CTRLR based snapshot/preset section. (Save state of on/off buttons) an example of an on and off sysex i received is: ctrlr midi monitor or another knob on RAW:[f0 f0 00 00 57 01 10 00 20 00 00 f7] thanks for any help. any example panel of such knob (or modulator for the crescendo) would be welcome :) edit: the "presets" sysex messages are different. And look like this (I need to recheck this as soon as I am back on the instrument): edit: the crescendo pedal goes like this: |
Beta Was this translation helpful? Give feedback.
-
|
Hi @suce-ex Here is an example panel of how to do that - it's one of many ways!
|
Beta Was this translation helpful? Give feedback.
-
|
Hi @dnaldoog for your fast reply! amazing! This works perfectly well as a send! I can record the SysEx message in my HOST (Cubase). what i somehow tried to understand by your method/what you did:
Thanks so far and thanks for enlightening me :) |
Beta Was this translation helpful? Give feedback.
-
|
Hi,

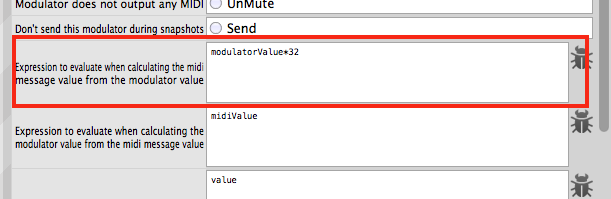

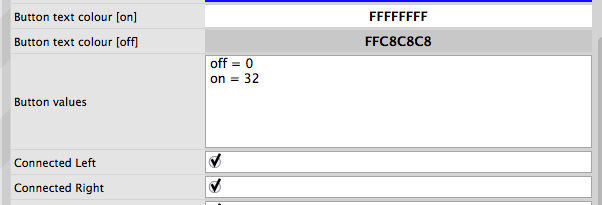

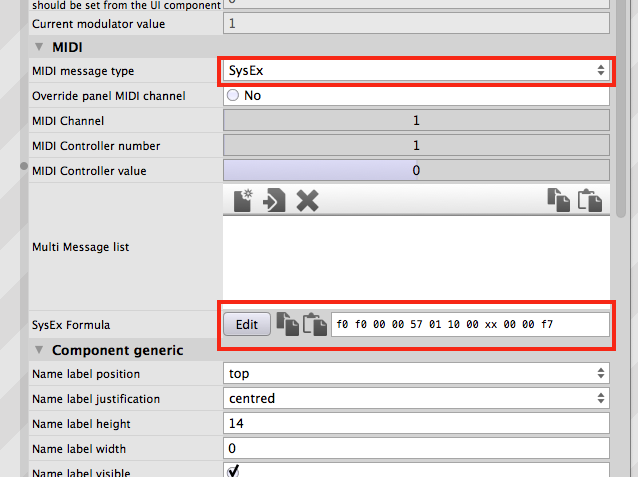

The message type to send is set to sysex if you want to remove the first F0 just click on the "sysex formula" field and remove it. John decided to use the modulator value calculator on the top of the pane and multiply the ON value by x32 Or you could also tell the corresponding values for both states like this : |
Beta Was this translation helpful? Give feedback.
-
|
thank you so much for your pictural explanation and the time you offer both of you! edit: unfortunately, this didnt work for me. the buttons dont change while receiving sysex msgs. |
Beta Was this translation helpful? Give feedback.
-
|
You are right a sysex MIDI message can never contain a value higher the Ordinarily that second byte will be the manufacturer id. ie 43 is Yamaha, 41 is Roland and if the manufacturer doesn't have a number 00 is used I believe. You can change the incoming value dynamically by changing the "reverse" receiving message to See new panel. off is blue on is red_2_0_using_midi_in_expressions.zip
|
Beta Was this translation helpful? Give feedback.
-
|
thank you for these explanations @dnaldoog unfortunately i run into a couple of minor/major problems:
work-around:
so far, thanks buddies ;) |
Beta Was this translation helpful? Give feedback.
-
|
‘A’ is just the name of my virtual midi port I use for development and often route through the program BomeSX for monitoring, so just change that and all should be okay. Also, I recommend using only Ctrlr 5.3.201 on Windows . Stay clear of version 6* |
Beta Was this translation helpful? Give feedback.
-
|
that's what I thought as well 3 seconds later. Tried to send a clean full report so :) Thanks for the recommendation, I'll check this version! |
Beta Was this translation helpful? Give feedback.
-
|
Ctrlr 5.3.201
Let's call it a day ... |
Beta Was this translation helpful? Give feedback.
-
That's right - one way to visualise or convert a hex number to decimal (maybe you know all this already) is to split the binary text representation of a hex number into two. Well I didn't know this for the longest time. So visualise Midi data values have a limit of 127 as represented by one byte, so that is 0x7f (7 * 16=112) and (F*1=15) = 127. If you are adding a string '80' to a MIDI message something is wrong. |
Beta Was this translation helpful? Give feedback.
-
|
It's time for me to learn my multiplication chart for 16. It's never too late :) |
Beta Was this translation helpful? Give feedback.
-
I can compute 2×16 but that’s about it! 😂 |
Beta Was this translation helpful? Give feedback.
-
|
now i know ;) thanks to you |
Beta Was this translation helpful? Give feedback.
-
|

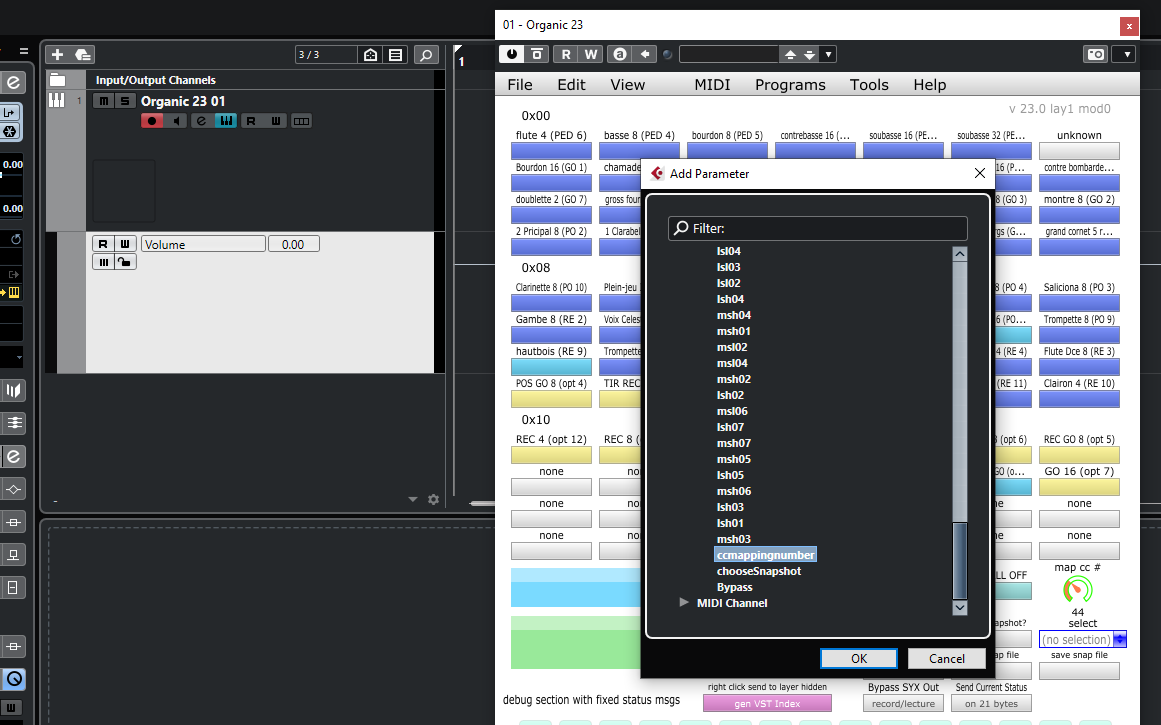

Hi there @suce-ex . For Cubase I use the following method: Is this the same as what you did? Running as VST under Cubase
|
Beta Was this translation helpful? Give feedback.
-
|
thanks for the lua code @dnaldoog ; I ll check this as soon as I am on my workstation! according my question on snapshot/presets: really a basic preset bank |
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog i got a million questions and thank you so much. and will release the sysex table of the instrument tomorrow. and havent checked your lua code for now. but strangely your v3.0.0 doesnt work at all on the buttons but receives wonderfully every sysex msg ! |
Beta Was this translation helpful? Give feedback.
-
It sends MIDI for me when I click on one of the buttons???? |
Beta Was this translation helpful? Give feedback.
-
|
It sends MIDI, but doesnt receive it on the buttons >the buttons don't switch on off while receiving midi, like your version 2.0 did |
Beta Was this translation helpful? Give feedback.
-
|
I rechecked, your version 3 worked pretty fine as soon as it wasnt loaded in Ctrlr with other panels open. |
Beta Was this translation helpful? Give feedback.
-
|
This panel might give you a head start! It's not a full implementation and would need a lot more work, (it's already pretty comprehensive) but it's functional at least. 😸 |
Beta Was this translation helpful? Give feedback.
-
|

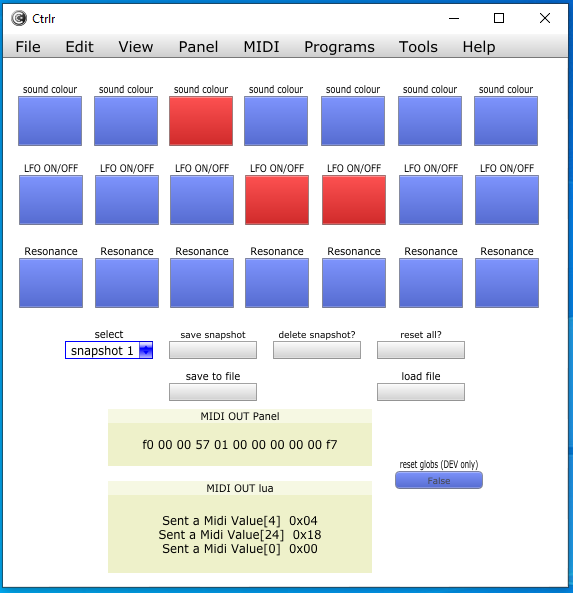

This panel now saves state and snapshots can be loaded from uiCombo directly - also a 'clear all' feature. |
Beta Was this translation helpful? Give feedback.
-
|
That's just amazing @dnaldoog ! It works that well > simple to add any uibutton as well just by adding it into the your listOfmods! just tried it out - wonderful!
|
Beta Was this translation helpful? Give feedback.
-
|
You got it - just add remove from Do you mean trigger a snapshot send command to that panel remotely as CC? I’m not sure how to access the ‘snapshot send’ function using lua. I looked today but couldn’t see how to do it. I have never used it in any panel before. |
Beta Was this translation helpful? Give feedback.
-
|
it's amazing! I will try to build up my panel on your snapshot panel ;)
yes, let's say snapshot 1 is triggered by cc 21 snapshot 2 cc 22 snapshot 2 cc 23 ... :) is my panel is meant to monitor and send sound "colour" combinations, this would be an extremely usable feature! |
Beta Was this translation helpful? Give feedback.
-
|
Finally I analyzed the SysEx messages being used on 65 buttons : Basically i found 3 string sections
variations are
xx is replaced by
so, if I made my sysex lesson correctly, the beauty of this is that however the "xx"s are added up, due to hexadecimal they keep unique combinations!
Calling both on one string would be
now the big question, how would i take off f0 00 00 57 01 00 08 00 00 00 f7 without taking off f0 00 00 57 01 00 02 00 00 00 f7? thanks so much to all |
Beta Was this translation helpful? Give feedback.
-
|
I'm not sure I understand, but you can do |
Beta Was this translation helpful? Give feedback.
-
|
but i would not want "6" but "2" :)
what midiValue must be set to achieve going backwards from |
Beta Was this translation helpful? Give feedback.
-
Then how about a JUCE function in lua |
Beta Was this translation helpful? Give feedback.
-
Something like: local m=MemoryBlock(" f0 00 00 57 01 00 40 00 00 00 f7")
local swapValue=0x20
local min=jmin(m:getByte(6),swapValue)
m:setByte(6,min)
console(m:toHexString(1))
|
Beta Was this translation helpful? Give feedback.
-
|
that's too highlevel for me to be understood yet basically, I would need on a string like having the possiblity to send on/off on each button individually without zero messaging all buttons like midiValue/64 would do |
Beta Was this translation helpful? Give feedback.
-
|
Dear @dnaldoog , I hope I can express myself better today than 6 days ago.
The way it's done: on expression to evaluate: setGlobal (0, setBit (global.k0, 4, modulatorValue)) : value 4 stands for hexadecimal 10 (as you know of course, but i didnt know nothing about it 6 days ago) value 0 = 1, value 1=2, value 2= 4, value 3=8, value 5=20, value 6=40 If I create 7 buttons this way, the output sysex is exactly what I want. Adding and substracting (on/off mouse on button) sends out exactly the sysex message my instrument understands. All 7 buttons turned on will send out "7F" (127 decimal) and that's how it's programmed. Now, there are a couple of problems I ran into:
There must be also a general misunderstand of myself with Ctrlr Panels:
What I wish to achieve:
As I found out before: and if "00" "08" "10" are "IDs" before 4 following strings ... and those are all used, my instrument sends out this message to reset them all this way: Since I wasn't even able to copy/paste the "DEMO- Complex expressions" (should i re-upload this panel?) into a new panel without making it work, it would be marvelous to have another start of those functions integrated in your amazing "save_snapshot 2" panel! big love p.s.: I am intrigued by the mod1 DISABLE knob of "DEMO - Complex expressions panel" how this and why: setGlobal (0, setBitRangeAsInt (global.k0, 4, 2, 0))
|
Beta Was this translation helpful? Give feedback.
-
|
Here is an idea of what you might be after, but warning! It seems to be very buggy and has taken me hours to even get it to this point :) - but it should set you on your way. You can send a CC signal from a controller B0 03 00 will load 'snapshot 3' and send all midi. It's basically working, but Ctrlr itself could be buggy with the buttons. The sliders seemed much more stable and I have read people having problems with Global Variables in the past. |
Beta Was this translation helpful? Give feedback.
-
|
mate, you are a genious!!! edit in time: we agree that "reset globes" as a reset all visually and midi out -not working yet ? :) love your investigation! |
Beta Was this translation helpful? Give feedback.
-
|
and lfo 2 and 4 build up 0a but as a preset it doesnt recall 0a ? it calls 0a but sends 00s after it.. |
Beta Was this translation helpful? Give feedback.
-
|
are we sure that RECEIVING sysex works as well on the buttons, without any changement on midivalue in expression to evaluate when calculating mod value from midi? (just in case for my nex 48h of workaround :) thanks so much buddy !!! |
Beta Was this translation helpful? Give feedback.
-
|
This version v5.0.0 sends out all MIDI when changing the comboBox - it utilises a hidden uiSlider which has the summed fields of each group of 7 buttons, using modulatorCustomIndex. function sendSnapshotMIDIout()
local div7 = #listOfModsIndexed / 7 -- currently 21 controls - this table size will be 3
local t = {} -- initialise
for i = 1, div7 do -- in lua a multidimensional table must be initialized
t[i] = {}
end -- initialise multidimensional table
for i, v in ipairs(listOfModsIndexed) do -- a table.sorted index of hash array listOfMods
--NOTE:: modulator names must end in 1-7
local index = panel:getModulatorByName(v):getProperty("modulatorCustomIndex")
table.insert(t[tonumber(index)], v) - a multi dimensional list of modulator names
end
for i, v in ipairs(t) do
local sum = 0
for i, value in pairs(v) do
sum = sum + bit.lshift(panel:getModulatorByName(value):getModulatorValue(), i - 1)
-- sum the values and bit shift left using the multi dimensional array of 7 values
--(i.e. the value of the 7th button gets left shifted by 6 so 0000 0001 becomes 0100 0000 or 0x40)
end
panel:getModulatorByName("bank" .. i):setModulatorValue(sum, false, true, false)
-- a hidden uiSlider modulator that fires off the sum of seven buttons as a MIDI message to machine
end
end
... so now if you add any more buttons, you will have to enter in the row number they belong to in the Actually, if I had know the end goal better from the start I would have not used the ModulatorValue Expression from the DEMO panel and would have used a modulatorCustomIndex to sum each button with lua and send the single summed value that way, but whichever works is fine. Just if you run into problems with the panel global variables, it might be best to change to pure lua. EDIT: Version 5 might address the incoming MIDI distribution!!!
|
Beta Was this translation helpful? Give feedback.
-
|
Dear @dnaldoog , I am totally amazed by this. Thanks to your little instruction tutorial, I ve been able to expend the panel to 28 knobs which were indeed controled by the snapshot combo. Totally amazed ! 💯 Congrats as well to the fact that now the buttons react to what they receive on midi! (Well, it does struggle on some buttons, quiet often the first 2 buttons in a line. Also it seems like the panel preferes that the buttons get activitated one after another in line, as well as in the logic in a chess field line from top to buttom. As soon as the buttons are activated randomely, not every button is called on/off) Snapshots send out perfectly on combo! But they won't receive back the same info, which they send out, what brings me into a major question:
f0 00 00 57 01 00 00 00 00 00 f7 but the 4 strings after the bold number should not be received seperately but at the same time, no? I should receive all informations happening on Another question is, should e.g. f0 00 00 57 01 00 18 00 00 00 f7 lighten up only the 5th button from the left - or both the 4th and the 5th from the left ? Some detected bugs: some snapshot file loads can cause the panel not to send anything out anymore. Is it possible to set the reset globs not only for the internal device but also reseting all buttons back to off ?(somehow like "reset snapshots does, but without reseting the snapshots ;)) I tried to integrate the midireceive from your "blue is off red is on v3" into this panel (it's good to have that integrated, it's easier for me to see what i receive as (last) midi string from the instrument directly in the panel, but i didnt know how to integrate into that without interference on the Midi out Panel: I feel this is going to be a wonderful little panel! Big hugs, edit: to make it more "visual" Reconstruction on String f0 00 00 57 01 00 xx xx xx xx f7 1st string after f0 00 00 57 01 00: flute 4 (PED) 2nd sting after f0 00 00 57 01 00: Bourdon 16 (GO) 3rd string f0 00 00 57 01 00: doublette 2 (GO) 4th string after f0 00 00 57 01 00: 2 Pricipal 8 (PO) so basically if sysex msg : f0 00 00 57 01 00 03 00 00 00 f7 (me as well, i need help to understand if it's all logical what i try to display) edit: I forgot to mention, that those strings (already mentioned) must be implemented somehow to this the preset msgs from the instrument msp go like this (that's an example) |
Beta Was this translation helpful? Give feedback.
-
|
Ah, so you would need to work this logic into the panel and maybe completely disable all the expressions and just use lua like I said I would have preferred to do from the start: I think such a solution is more solid. 😊 I think you are going to have to do a complete re-write! 🤔 -- = string.format
--myPanel = panel
registerByte = function(--[[ CtrlrModulator --]] mod --[[ number --]], value --[[ number --]], source)
if myPanel:getBootstrapState() then
return
end
if source ~= 4 then
return
end
local byte1, byte2, byte3, byte4 = 0, 0, 0, 0
for key, v in pairs(bytLU) do
local val = panel:getModulatorByName(key):getModulatorValue()
val = val * v.von
if v.position == 1 then
byte1 = byte1 + val
elseif v.position == 2 then
byte2 = byte2 + val
elseif v.position == 3 then
byte3 = byte3 + val
elseif v.position == 4 then
byte4 = byte4 + val
end
panel:getLabelComponent("d"):setText(sf("f0 00 00 57 01 08 %.2X %.2X %.2X %.2X f7", byte4, byte3, byte2, byte1))
end
end
Your new table for names (previously bytLU={
msh01={von=1,position=4},
msh02={von=2,position=4},
msh03={von=4,position=4},
msh04={von=8,position=4},
msh05={von=16,position=4},
msh06={von=32,position=4},
msh07={von=64,position=4},
lsh01={von=1,position=3},
lsh02={von=2,position=3},
lsh03={von=4,position=3},
lsh04={von=8,position=3},
lsh05={von=16,position=3},
lsh06={von=32,position=3},
lsh07={von=64,position=3},
msl07={von=64,position=2},
msl06={von=32,position=2},
msl05={von=16,position=2},
msl04={von=8,position=2},
msl03={von=4,position=2},
msl02={von=2,position=2},
msl01={von=1,position=2},
lsl01={von=1,position=1},
lsl02={von=2,position=1},
lsl03={von=4,position=1},
lsl04={von=8,position=1},
lsl05={von=16,position=1},
lsl06={von=32,position=1},
lsl07={von=64,position=1},
}
|
Beta Was this translation helpful? Give feedback.
-
|
Genious! I feel like a child on christmas ! added in your registerByte function since we are already here, couldnt we expand the panel to 56 buttons (with half button size '32') to include the other f0 00 00 57 01 00 ms ls msh lsh f7 ? :)) I'll continue to analyze and check where I get with it. edit: the advantage of this coding in lua is also, that CC implementation on the uiknobs should be very clean. great! |
Beta Was this translation helpful? Give feedback.
-
|
Excellent! I went back to square one, because only now it's coming into focus for me. It's very hard to do these thing when you don't have the machine in front of you. Your |
Beta Was this translation helpful? Give feedback.
-
|

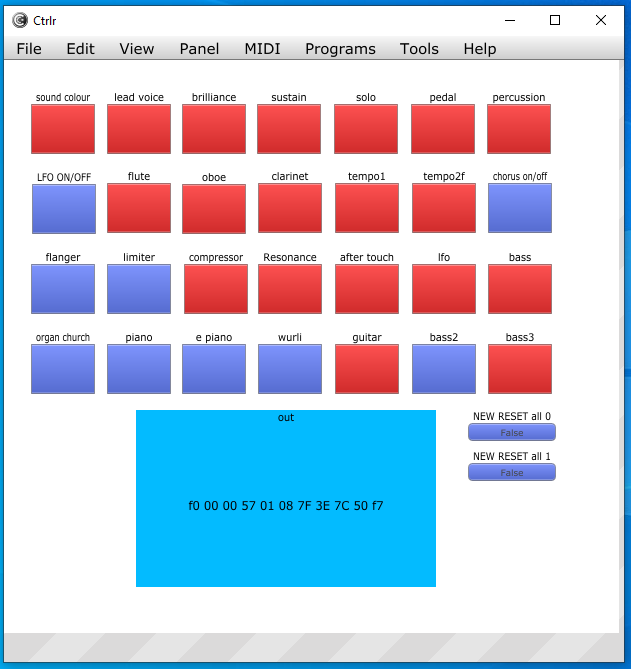

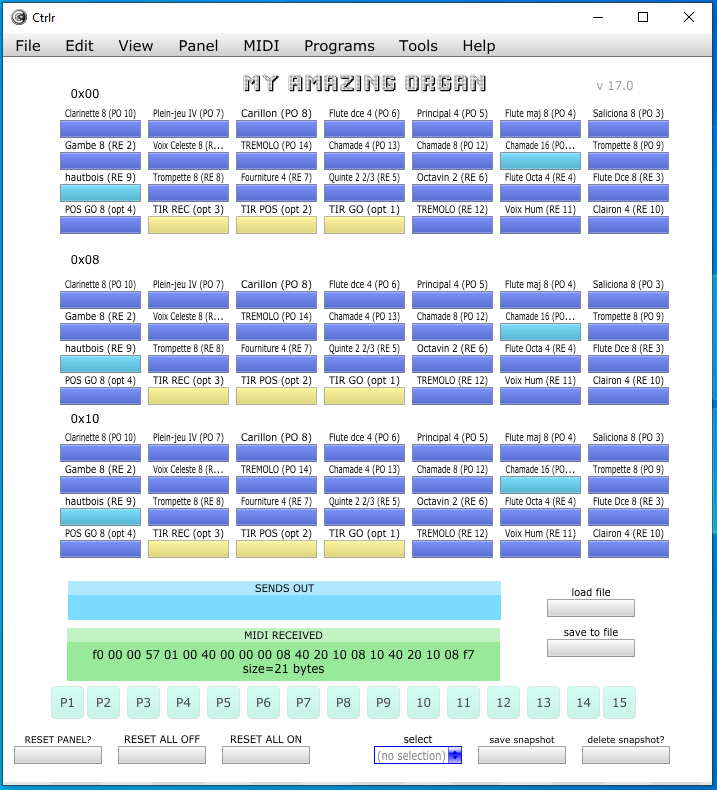

Version 9! This works very well with incoming MIDI assignment - all pure lua and much more stable. function repopulateSysexFromIncoming(m)
if m:getData():getByte(5) == 0x08 then -- testing for each family of bytes - duplicate as needed
local j = 0
for i = 1, 4 do -- fours bytes of data
j = i + 5 -- position of first byte of data
local mask = {1, 2, 4, 8, 16, 32, 64} -- bit AND masking
local byte2split = m:getData():getByte(j)
for andb = 1, #mask do
local split = bit.rshift(bit.band(byte2split, mask[andb]), andb - 1)
panel:getModulatorByName(bytLUref[i] .. andb):setModulatorValue(split, false, true, false) -- see below for fix
end
j = j + 1
end
end
end
EDIT 2022/04/15 Fixed reverse value bug in version 10 (code above adjusted) |
Beta Was this translation helpful? Give feedback.
-
|
Wow, this looks like a damn good start ! minor bug: switching between reset 0 and reset 1 does not affect label component 'd' until a button is pressed again. I guess that is normal, cause it's meant to affect only the internal devise ? (that's why it's not sending sysex neither ? it's more like a debug component?) please follow on 👍 :) |
Beta Was this translation helpful? Give feedback.
-
|
btw, i found out how the instruments reacts when changing from let's say anything on f0 00 00 57 01 08 msh lsh msl lsl f7 to anything on f0 00 00 57 01 00 msh lsh msl lsl f7 > it just keeps the last state of 08... (08 msh lsh msl lsl) like it is
however it understands the string combination as well as (apparently, not 100% sure on that, probably yes) |
Beta Was this translation helpful? Give feedback.
-
I could have sworn I had that working, but yes it was reversed - Have made the necessary changes. |
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog , it works like a charm !!! yet, I was able to make it recognize size 15 and 19 strings. edit: I think I am uncorrect, it could all have place in bytLU I keep posting if I get any usable results.
now, since cc and sysex messages cross, how could I filter one from the others on 2 different labelComponents and display cc not as hexstring but as CC 12,13 and so on ? :) You helped me so much getting until here ! Thanks so much I am totally amazed (and not sleeping and eating). yours best , |
Beta Was this translation helpful? Give feedback.
-
|
i think i got it how to integrate the 28 0x00 ... i'll keep you updated |
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog , save snapshots 10_layout-7_vst_f.zip panel sends perfectly 0x00 out on another 28 buttons... but receiving it needs muscle skills in programming ... only you can help out ! |
Beta Was this translation helpful? Give feedback.
-
Can you put this another way? Reword the problem perhaps? |
Beta Was this translation helpful? Give feedback.
-
|
with pleasure: Now in "save snapshot version 10" or "save snapshot version 10 layout 7", the arriving CC msg only switches the buttons on and off, but not sending out their sysex msgs (what i call a virtual midi thru). However, as a monitor feature for sysex messages, it is still important to keep it like it does yet > No midi thru while receiving sysex messages. It would actually be very handy to have an on/off button for midi CC in and out coming msg. |
Beta Was this translation helpful? Give feedback.
-
|
This panel is an adaption of your code. I have to say that at this point I have spent countless hours on this project. Most of last week and just doing this panel took me from 5:00pm to now 10:45pm! Lol 😢 Because I don't really know what direction you are taking, I am like a pilot flying in heavy cloud. Where am I going? What instrument is this even for? Also, personally I would never be testing VST or Standalone instances unless I had fully sorted out the logic of the panel first. It is a long process even if one has experience; but I really recommend you study someone's panels (mine?) to get ideas on which direction to take. Aslo lua; if you can understand tables you can work with data and then implement efficient code. Without deep knowledge of tables tables, people tend to write C style, which I think is less efficient in lua. I printed that page off and read it and read it on the train to work until I had that eureka moment! To me now to reintegrate the snapshot code I originally showed you would take more countless hours, because the overall blueprint has changed from what I first posted - actually these were only ever pointers, not fully conceived solutions. Ctrlr is difficult, but I think you have plenty of code to work from and also many challenges to get it working! Anyway I hope this panel is working. Again it is an adaption of your code and I decided I would probably do it differently given the second bank of controls (admittedly) I always knew you needed to implement those. But such is the importance of planning, which I can't do in this case! ❤ |
Beta Was this translation helpful? Give feedback.
-
Not quite, The bytLUref[5-i] refers to the position order found in the element |
Beta Was this translation helpful? Give feedback.
-
|
you are a magician anyway.... everything missing for now is -the panel- to understand from starting SETUP: |
Beta Was this translation helpful? Give feedback.
-
|
It's getting late for you - are you in Europe? and I have to leave the house now, but this is version 16 - just a snapshot and not complete. What does this mean? f0 00 00 57 01 00 xx xx xx xx 08 xx xx xx xx f7 |
Beta Was this translation helpful? Give feedback.
-
|
What does "from starting SETUP" mean and what does "READING" mean? |
Beta Was this translation helpful? Give feedback.
-
|
in Europe, yes. Are you on the earth? I tried to say if those messages would come on after the other that's how the machine works and it would be needy that the panel works the same way f0 00 00 57 01 00 xx xx xx xx f7 and |
Beta Was this translation helpful? Give feedback.
-
|
Here is version 17! I have done a lot of work on this - I hope it's want you want and I hope I interpreted the incoming sysex request properly - that took hours! 🤷♀️ Save Snapshots Integrated 17.zip
|
Beta Was this translation helpful? Give feedback.
-
|
is it possible to dissable the preset section for debug reasons ? that one would be 100 % advancing the project (i guess disableing would be to hard to write in lua. |
Beta Was this translation helpful? Give feedback.
-
????? |
Beta Was this translation helpful? Give feedback.
-
|
okay, let's call it a day for now ...
|
Beta Was this translation helpful? Give feedback.
-
|
I resume , there are moments the panel doesnt receive. doesnt write, does recieve and writes but without controller. does change change on cubase time line as if there was a controller. I restart, and recheck everything my friend! |
Beta Was this translation helpful? Give feedback.
-
|
send out sysex totally not working (on host) ....so strange ... |
Beta Was this translation helpful? Give feedback.
-
|
This version uses a uiSlider to set a CC number to 0-127 - if an external MIDI controller sends out a signal when set to that MIDI number, the panel will set the snapshot corresponding to the CC value and send the snapshot. Values sent above the number of snapshots saved on the panel are ignored.
|
Beta Was this translation helpful? Give feedback.
-
|
as I am new to this, i wished to bypass it with a button, but i figured out one way to do that which works for me, that's cool: I am very amazed by your code of this panel. It's like a poem. It's really short and well thought. @dnaldoog the only need of that little code is, because sysex msg sent, send out sysex msgs, thats not good.

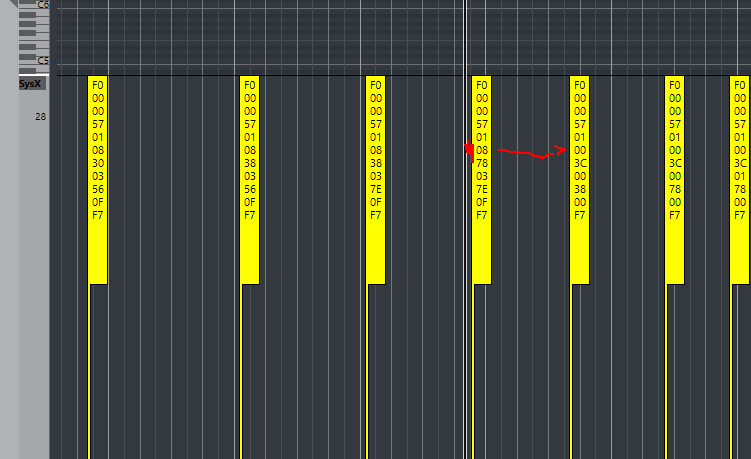

(for now, if button reset all 0 is switched, we got 3x27 Sysex Msgs which repeat. That is 81 Sysex messages just to say in the end: F0 00 00 57 01 00 00 00 00 08 00 00 00 00 10 00 00 00 f7 . My Cubase got headache at this moment receiveng 81 Sysex Messages, fear what this could do to the organ (actually the organ is more cool i guess, ... ) But hey, this should be 3 0x00 0x08 0x10 messages or all combined.. that's chic! |
Beta Was this translation helpful? Give feedback.
-
|
now, I got an option to filter out going-out SysEx msgs, is ther an easy way to filter out CC msgs ?
|
Beta Was this translation helpful? Give feedback.
-
|
dear @dnaldoog , I'd like to add: Is it possible you uploaded a version v19 which wasnt finished? I dont see how the slider activated as interacts with preset-combo |
Beta Was this translation helpful? Give feedback.
-
What CC messages? There are no CC messages in this panel, right? |
Beta Was this translation helpful? Give feedback.
-
This slider doesn't do anything itself. Let's say you have an external controller MIDI device next to your organ. Instead of using the computer to change snapshots, you could use a slider on the physical controller to change the snapshots. If the physical slider's rotary knob or whatever is set to a CC number that is the same as this uiSlider, then the panel will react and change the snapshot. It's possibly a feature you don't need, so please ignore it. |
Beta Was this translation helpful? Give feedback.
-
|
In version 20 setting all controls to You would have to give more detail about:
What sysex received and what sysex sent? |
Beta Was this translation helpful? Give feedback.
-
|
Thank you @dnaldoog , for this trick ! When I opened your panel v20 it was still on panelMidiPauseOut, 1 i guess, because nothing happend. However, while implementing it into mine it does work !
In short: all But it shouldnt send back Sysex at all as a result of receiving Sysex . Maybe a first work-around would be a filter which filters out doubles created under 20ms I would have in mind a code like String is ident (this is a cache) But even better would be not to send Sysex as a reaction on receiving sysex. (I tiny question: what lua code would I need to active an instrument inside of this panel Thanks so much buddy! This is perfection pure ! |
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog and that's why i couldt use the uiSlide as controller ? (which would be very usefull! as you suggested this way) Organic 19 working 20220420 mod6.zip Ctrlr send me sometimes one single error:
|
Beta Was this translation helpful? Give feedback.
-
|
Try this one! |
Beta Was this translation helpful? Give feedback.
-
|
Thank you,
But it feels pretty stable, no errors. |
Beta Was this translation helpful? Give feedback.
-
The
I think I fixed 1. |
Beta Was this translation helpful? Give feedback.
-
|
BRICKWALL @dnaldoog BRICKWALL !!! edit: that's actually not the problem, in contrary "plugin host to output" must be off otherwise there are midi feedbacks happening (if device out is sent to a device). Ctrlr sends as VST in Organic 19 mod 8 basically : etc... Now Reset all 0 and 1 display on my Controller as well :) !!! But still the snapshots don't send out to the controller ! Even with the setup hooked up working. What could this be ? Edit: IT WORKS !!! Setup NO THRU NO OUTDEVICE , but Out to Host only. Would it be possible to make it work in Standalone ? With routing outside the Host and all coming out from CTRLR OUT DEVICE and not CTRLR VST OUTPUT ?
Marvelous !! |
Beta Was this translation helpful? Give feedback.
-
No! The slider value refers to the CC number your external controller is mapped to (Imagine a slider on a MIDI keyboard) As you move the slider, the value changes. The value changes the shapshot number - the CC number connects the panel to the MIDI keyboard. So if your keyboard has a slider set to B0 03 00. Change the uiSlider to three and the panel and keyboard will link up. Change the slider value to 1 on the MIDI keyboard and snapshot 1 will load - So the message would be B0 03 01 coming into the panel. CC consists of three bytes
Note that B0 in decimal is 1011 0000 176 - any number over 127 is considered a status byte in MIDI (anything under 128 is data) , which is why sysex starts with F0 or 1111 0000 or 240 decimal and ends with F7 247. |
Beta Was this translation helpful? Give feedback.
-
|
Now I got it! The uiSlider sets CC . That was difficult to get in my mind. It works perfectly ! |
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog |
Beta Was this translation helpful? Give feedback.
-
|
I have to admit that uiCombo "snaphshot" sends out zillions of doubled informations. And not just 3x 0x00, 0x08, 0x10 strings.
What would bring me to the very last task of this panel:
That 's somehow bringing the symphony of this beautiful panel to its end. And it would be totally DONE ! (if I would understand your slider then 0_o ) Big LOVE P.S.: @dnaldoog : I hope I made this very last demand on the panel "BRICKWALL" clear ;) Love to you! |
Beta Was this translation helpful? Give feedback.
-
|
This will take some time to achieve 😮💨 |
Beta Was this translation helpful? Give feedback.
-
|
Question: uiButton name msh201 is the first intrsument on the top left of the panel, listed as f0 00 00 57 01 00 01 00 00 00 f7, if no other buttons are switched on. |
Beta Was this translation helpful? Give feedback.
-
|
Encore, Je ne comprends pas ce que vous demandez! There is no CC in the panel, is there? |
Beta Was this translation helpful? Give feedback.
-
|
This TOOK A LOT of work. 🤢🤢🤢🤢🤢 |
Beta Was this translation helpful? Give feedback.
-
|
You are a magician. I am totally impressed. As well as the beauty of programming. Enormous short code. 🥇 Error: Unfortunately, the header is 5 bytes "F0 00 00 57 01" not 4 bytes "F0 00 00 57" thought I could correct it that way: unfortunately not. I am curious how this is done. There was a little bug, where calling the panel midi was muted. I could fix that by setting back the timerId from 1 to 0 in the init method. |
Beta Was this translation helpful? Give feedback.
-
|
to finish this, This is what I meant which CC msgs in this panel.
(btw, your french is far better than my english, but this you already know ;) ) CC msgs send all out, while changing RESET ALL to 1 or 0. This is true , while watching Ctrlr MidiMonitor. (To receive CC msgs assigned on uiButtons, it seems the "input from host to comparator" MUST be switched ON. Yours, we are finally quiet there, |
Beta Was this translation helpful? Give feedback.
-
Well done working it out. You can now delete the You're right. I set timer 1 to run where it should have been timer 0!!! |
Beta Was this translation helpful? Give feedback.
-
|
This is how you would send all CC messages out. I am presuming the unit can handle the data sent at once, otherwise you would need to stagger each message in a timer (See Organic 22_22_1_mod1 timer CC send). The function sendBulkCCmessage()
local chann = chOut()
for _, myMod in pairs(listOfMods) do
for k in pairs(myMod) do
if tonumber(_G[k]:getMidiMessage():getProperty("midiMessageType"))==0 then -- it's a CC message
local value = _G[k]:getModulatorValue()
local midiNumber = _G[k]:getMidiMessage():getProperty("midiMessageCtrlrNumber")
panel:sendMidiMessageNow(CtrlrMidiMessage(sf("b%.1X %.2X %.2X",chann,midiNumber,value)))
end -- it's cc
end -- inner loop
end -- outer loop
end
init = function(--[[ CtrlrInstance --]] type)
--save all modulators as lua variable names (no spaces or illegal lua variable characters allowed)
for _, byt in pairs(listOfMods) do
for k, v in pairs(byt) do
_G[k] = panel:getModulatorByName(k)
end
end
...
end
function chOut()
return panel:getProperty("panelMidiOutputChannelDevice")-1
end
|
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog , thank you for your timer CC version, as well, fortunately my controller doesnt need this feature. But it'll be a great feature for all of those you would be in need of this. As you can imagine, I studied all your code and the way the panel could work at its best. I am on Cubase right now: and my SYX receiving works ONLY : Ctrlr OUT DEVICE (as fake Virtual Port) routed (in Cubase to IN) ... I fall back on: sliders and snapshot combo: Cheers to you buddy, you made a dream come true for me !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! |
Beta Was this translation helpful? Give feedback.
-
|
Do you mean mapping to a vst index? All you need to do is change the cc mapping slider’s vst index to a number you want and access it in Cubase that way, maybe 😵💫 ?? |
Beta Was this translation helpful? Give feedback.
-
|
what is meant by vst "index" ? |
Beta Was this translation helpful? Give feedback.
-
|
i did not want to access the slider in cubase, i wish a NEW uiSlider being connected with snapCombo INTERNAL |
Beta Was this translation helpful? Give feedback.
-
Je ne comprends pas 😢 |
Beta Was this translation helpful? Give feedback.
-
|

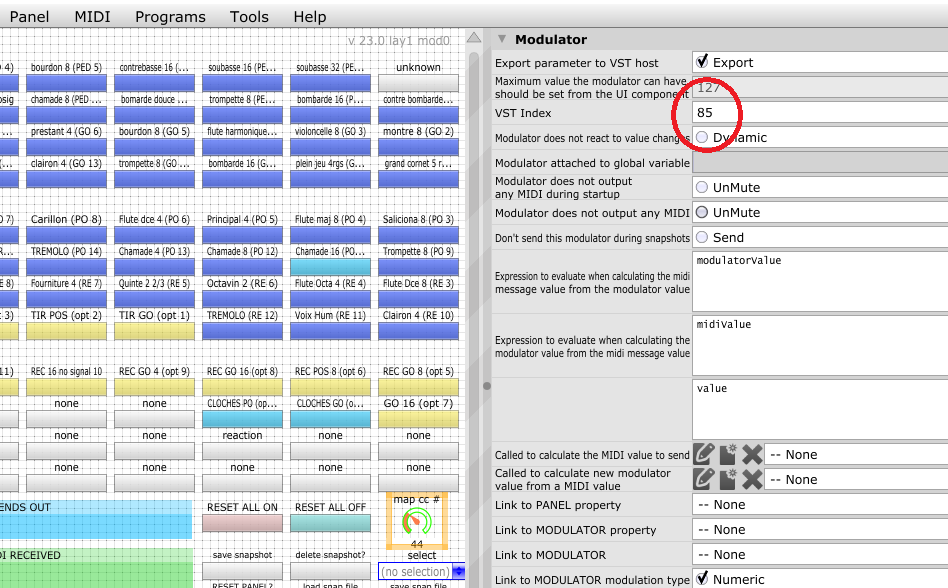

This version 23 has VST indexes generated. There's a button there which you can right click and send to hidden layer and only use when you want to regenerate. Here is a cubase project file showing how to access a parameter on the panel.
|
Beta Was this translation helpful? Give feedback.
-
|
Do you mean a slider that changes the snapshots in the panel instead of using the combo box? |
Beta Was this translation helpful? Give feedback.
-
|
yes exactly! |
Beta Was this translation helpful? Give feedback.
-
|
iuSlider, which interacts the same way as an external hardware slider but inside the CTRLR host, and even better : could itself set its "maximum value of component" automatically set to the number of snapshots available ? ( ;) ) |
Beta Was this translation helpful? Give feedback.
-
|
Like this? |
Beta Was this translation helpful? Give feedback.
-
Excellent @dnaldoog , just EXCELLENT . I love it !!! To make this slider brickwall working, for now :
And another idea on this, a really handy idea (!), a bit magical :
Now, my Idea is:
That would mean for example: [graphical] - CC incoming gets mapped on this slider as: 2 Snapshots (internal mapping): So the sensibility of the hardware knob/slider as 0 to 127 would always be updated intelligently by how many snapshots we actually have! [That would be slider intelligence pure !!! and for everyone in the ctrlr cummunity a magic tool (no more need to tweak external for internal purpose, all done on internal ] [hardware cc 0-127 relative on internal demande] |
Beta Was this translation helpful? Give feedback.
-
|
Okay! 🤔🤔🤔🤔 How about this then? This is the incoming interpolation formula: function interpolateIncomingCCValue(value)
local s = #snapshotList
local div = 127 / s
local z = value / div
z = jmax(1, math.ceil(z))
return z
end
|
Beta Was this translation helpful? Give feedback.
-
|
@dnaldoog , YOU NAILED IT ! |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
Hi everyone, I am new here, discovering this wonderful playstation, just amazing.
My first task:

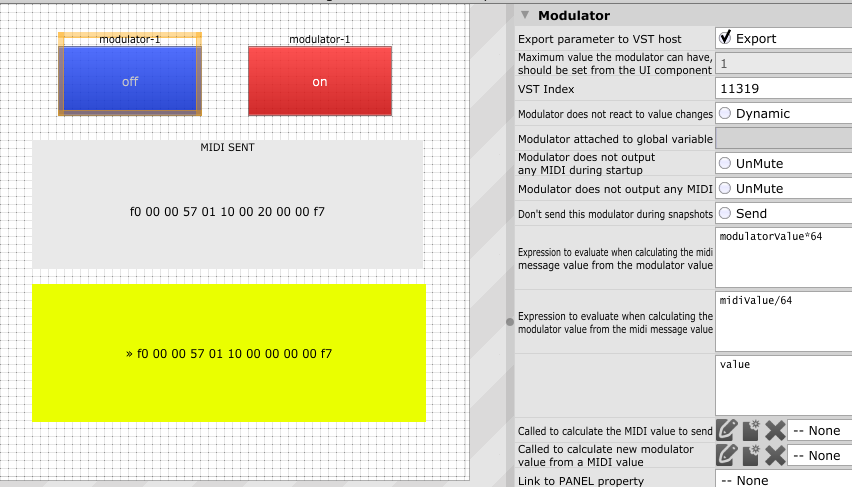

I d wish to get an on/off sysex signal BUTTON.

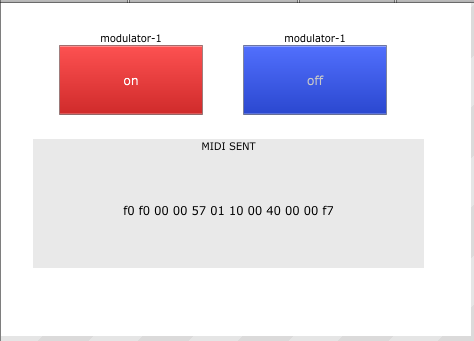

On an 11 section Sysex message ( I got both on/off messages ; which btw are starting in ctrlr monitor f0 f0 ??)
I tried to understand this: https://ctrlr.org/forums/topic/toggle-two-sysex-strings/
but i just discovered this wonderful application and forum yesterday, and i dont know how to apply it.
I'd be very thankful, if one of you could send out a little panel example for such a button (which toggles between 2 colors)
Love
SYS-EX
Beta Was this translation helpful? Give feedback.
All reactions
